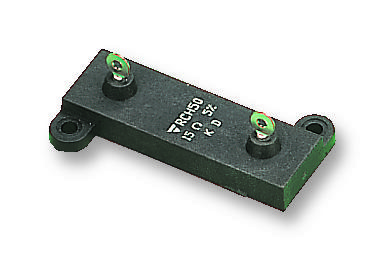

Vishay RCH50S47000JS06 Power Resistor
Vishay Sfernice RCH series power resistors are high-performance, mounted onto heatsinks, and optimized for high frequency and high overload applications. Manufactured with cermet thick film technology, these resistors offer power ratings from 5W to 50W, low thermal resistance up to 0.8°C/W, and high insulation resistance of 10 MΩ. They feature non-inductive design, are RoHS compliant, and include multiple termination options. Suitable for cut-out, high-frequency circuits, and robust overload conditions up to 2500 V, they are ideal for industrial and control systems.
Vishay RCH50S47000JS06 Power Resistor Specifications:
- Power Rating: 5W to 50W
- Resistance Range: 0.24Ω to 1MΩ
- Thermal Resistance: up to 0.8°C/W
- Insulation Resistance: 10 MΩ
- Overload Voltage: up to 2500 V
- Operating Temperature: -55°C to +125°C
- Resistance Tolerance: ±1%, ±2%, ±5%, ±10%
- Coefficient of Resistance: 150 ppm/°C or 250 ppm/°C
- Mechanical Protection: Insulated case with alumina substrate
- Connections: Tin-plated copper alloy leads or flat with hole
- Dimensions vary according to model, with lengths from 16.6 mm to 47.8 mm and weights from 4 to 12 grams
- RoHS compliant and designed for high frequency cut-out circuits and overload conditions
Buy the Vishay RCH50 U–Reliable Power Resistors for Industrial Applications
Enhance your electrical systems with Vishay Power Resistors, offering high power ratings from 5W to 50W, excellent overload capabilities up to 2500 V, low thermal resistance, and RoHS compliance. These resistors are engineered for easy mounting onto heatsinks and optimal performance in high frequency, cut-out, and industrial circuits. Crafted with durable cermet thick film technology, they feature low inductance, high insulation resistance, and customizable termination options, making them ideal for robust and reliable circuit protection and control solutions.
Buy Vishay RCH50 resistors now and experience unmatched reliability and performance in high overload and frequency circuits.
Frequently Asked Questions
Where can I buy Vishay RCH50S47000JS06?
You can click on the BUY or RFQ button to purchase RCH50S47000JS06 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCH50S47000JS06?
You can download the RCH50S47000JS06 datasheet or visit the Vishay website for support.
Who is the manufacturer of RCH50S47000JS06?
Vishay
