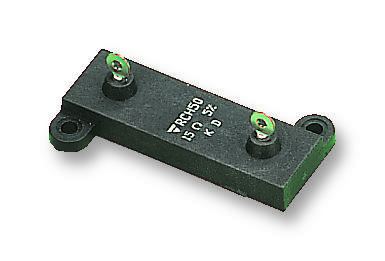

Vishay RCH50S4R700JS06 Power Resistor
Vishay Sfernice RCH series power resistors are designed for mounting onto heatsinks, offering high power ratings up to 50W, with excellent overload capabilities up to 2500 Vams. Manufactured with thick film cermet technology, they provide high thermal capacity, reduced size, and enhanced insulation. Suitable for high-frequency operation, they feature non-inductive construction, making them ideal for cut-out circuits and high current applications. With various resistance values, they ensure reliable performance across a wide temperature range of -55°C to +125°C, complying with RoHS standards.
Vishay RCH50S4R700JS06 Power Resistor Specifications:
- Power Rating: 5W to 50W (chassis mounted), 2W to 5.5W (unmounted)
- Resistance Range: 0.24Ω to 1MΩ
- Resistance Tolerance: 1%, 2%, 5%, 10%
- Temperature Coefficient: 150 ppm/°C
- Maximum Voltage: 160V to 1285V (limiting element voltage)
- Overload Voltage: 320V to 2500V
- Thermal Resistance: 0.8°C/W to 4.8°C/W
- Operating Temperature Range: -55°C to +125°C
- Insulation Resistance: 10 MΩ
- Environmental Conditions: Climatic category 55/125/56, flammability class 2
- Dimensions vary per model with lengths from 16.6 mm to 47.8 mm, widths from 4 mm to 15.5 mm
- Classified as RoHS compliant and designed for mounting onto heatsinks with specific torque values
Buy the Vishay Series RCH Power Resistor: RCH50S4R700JS06
Explore and purchase the Vishay RCH power resistor online today. Engineered for high power ratings up to 50W, these resistors offer excellent overload capacity, thermal management, and reliable insulation, making them ideal for high-frequency circuits and high-current applications. With a wide resistance range and precise specifications, Vishay’s RCH series ensures durability and consistent performance. Easily installed onto heatsinks, these resistors meet international standards and are RoHS compliant. Purchase now for robust industrial solutions with proven reliability and long-lasting durability.
Get Vishay RCH50S4R700JS06 today—built for high power loads and reliable performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy Vishay RCH50S4R700JS06?
You can click on the BUY or RFQ button to purchase RCH50S4R700JS06 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCH50S4R700JS06?
You can download the RCH50S4R700JS06 datasheet or visit the Vishay website for support.
Who is the manufacturer of RCH50S4R700JS06?
Vishay
