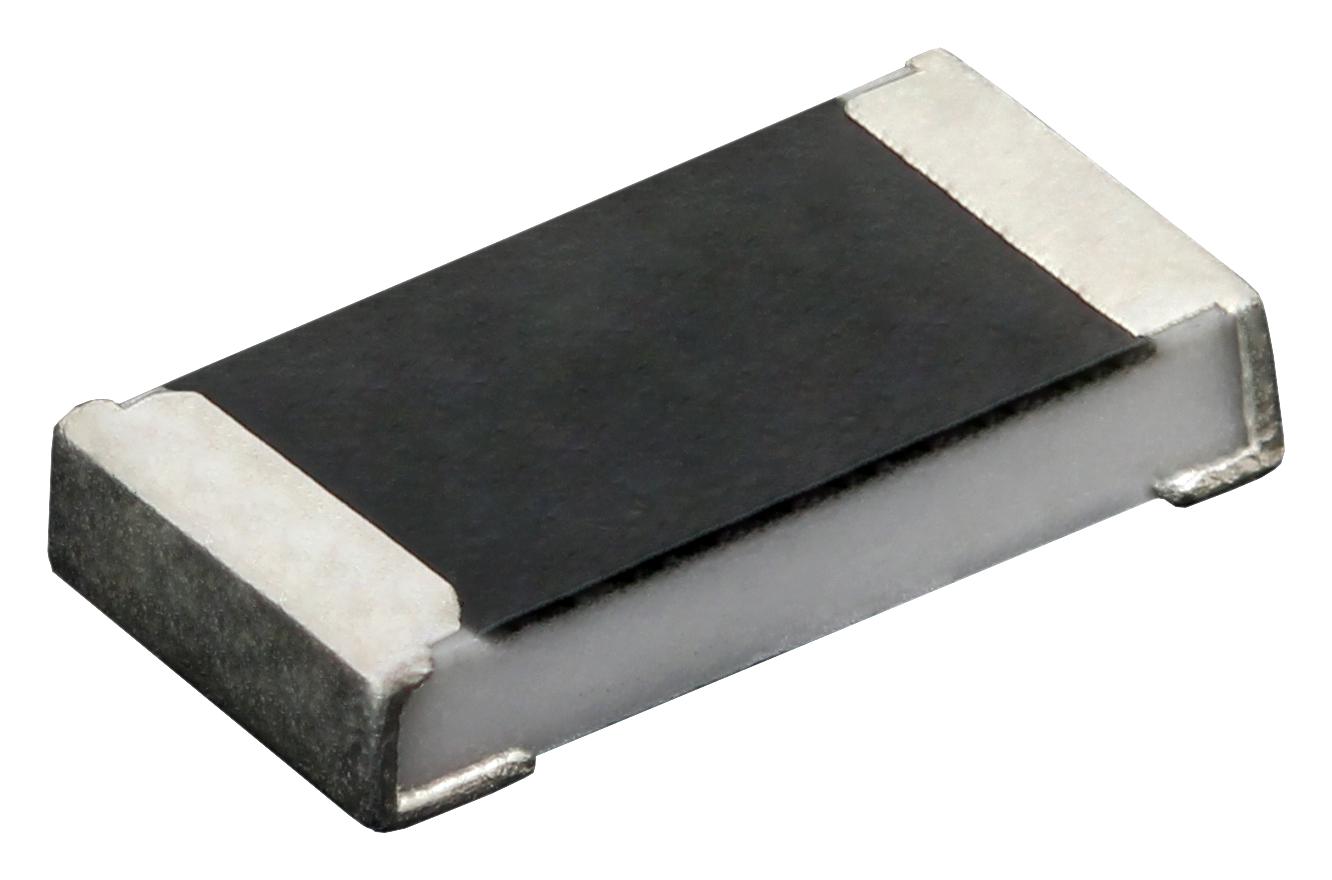

Vishay RCS12063K30FKEA High Power Thick Film Resistor
The RCS1206 e3 thick film chip resistor series from Vishay provides superior surge pulse capability, high power rating, and excellent endurance for demanding applications. Constructed on a high-grade ceramic substrate with a cermet film layer, these resistors are optimized for automotive, industrial, and telecommunications uses, offering resistance values from 1.9 to 10 MΩ with ±5% tolerance. Their RoHS-compliant design features protected coatings, suitable for automatic SMD processing, and withstands thermal, mechanical, and climatic stresses, ensuring long-term reliability in various operating environments.
Vishay RCS12063K30FKEA High Power Thick Film Resistor Specifications:
- Size: 1206 (3.2 mm x 1.6 mm)
- Resistance Range: 1.9 to 10 MΩ
- Resistance Tolerance: ±5%
- Temperature Coefficient: 200 ppm/K; + 100 ppm/K
- Rated Dissipation: 0.5W
- Operating Voltage, Umax: 200 V
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Construction: Ceramic substrate with cermet film layer
- Protective Coating: Glass-over with pure tin on nickel plating
- Compliance: RoHS, AEC-Q200 qualified
- Suitable for automatic SMD assembly, wave, reflow, vapor phase soldering
- High surge pulse capability, excellent for automotive and industrial electronics
- Resistance stability after 1000h and 8000h at high temperatures
Buy the Vishay Series RCS1206 E3: High Power Thick Film Resistor: RCS12063K30FKEA
Discover Vishay RCS1206 e3 high power thick film resistors, engineered for demanding industrial and automotive electronics. With a resistance range of 1.9 to 10 MΩ and ±5% tolerance, these resistors feature excellent surge pulse capacity, high thermal stability, and RoHS compliance. They are compatible with automated SMD assembly, performing well during reflow or vapor phase soldering, and are built to endure mechanical, climatic, and electrical stresses, ensuring long-lasting, reliable service in critical applications.
Get Vishay RCS1206 e3 high power thick film resistor today—designed for durability, surge performance, and reliable operation in challenging environments.
Frequently Asked Questions
Where can I buy Vishay RCS12063K30FKEA?
You can click on the BUY or RFQ button to purchase RCS12063K30FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS12063K30FKEA?
You can download the RCS12063K30FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS12063K30FKEA?
Vishay
