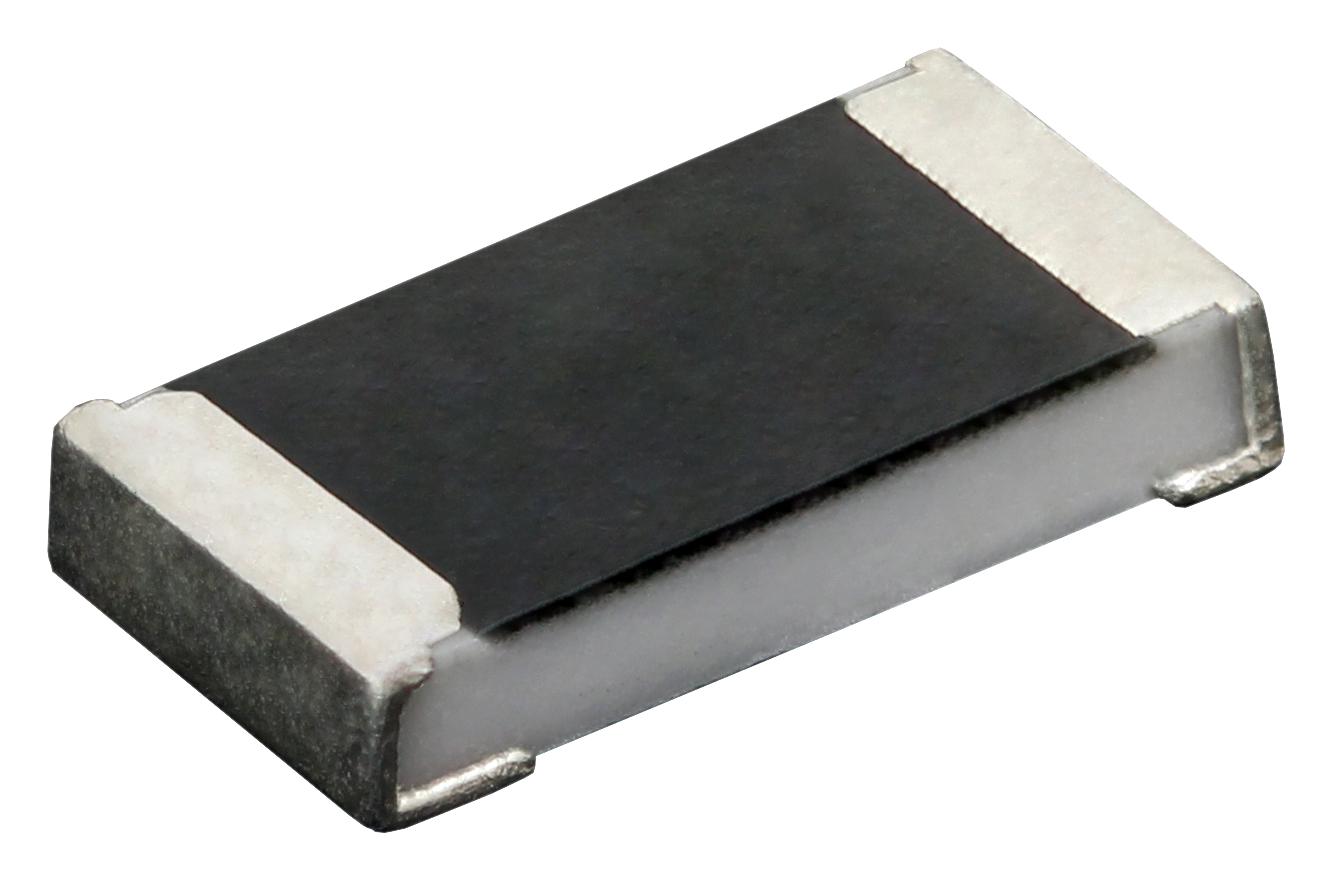

Vishay RCS120647R0FKEA High Power Thick Film Resistor
The RCS1206 anti-surge thick film chip resistor series is designed for high power pulse applications, automotive, industrial, and telecom. Made on an Al2O3 ceramic substrate with cermet film and glass-over, these resistors offer excellent surge pulse capability, high power rating up to 0.5W, and are RoHS compliant. They are suitable for automatic SMD assembly, with robust construction resistant to mechanical, climatic, and cleaning solvents. Qualified under AEC-Q200, they ensure reliability for demanding electronic systems, with precise resistance tolerance and low TCR for stability.
Vishay RCS120647R0FKEA High Power Thick Film Resistor Specifications:
- Size: RCS0402, RCS0603, RCS0805, RCS1206
- Resistance range: 1.9 to 10MΩ
- Resistance tolerance: ±5%, ±1%, 0.5%
- Temperature coefficient: ±200 ppm/K or ±100 ppm/K
- Rated dissipation: 0.2W to 0.5W depending on size
- Operating voltage: 50V to 200V
- Film temperature max: 155°C
- Operating temperature: -55°C to +155°C
- Mechanical dimensions vary with size (length from 1.0mm to 3.2mm, width from 0.5mm to 1.6mm)
- Solder pad dimensions follow IEC and IPC standards for reliable mounting
- Encapsulated for environmental resistance, RoHS and lead-free compliant
- Qualified to AEC-Q200 for automotive reliability
Buy the Buy Vishay RCS0805 100R Part Number RCS0805100RFKEC Online
Discover the reliable and high-performance thick film chip resistor series suitable for automotive, industrial, and telecom applications. Crafted with high-grade ceramic and cermet film, these resistors provide excellent surge pulse capability, high power ratings, and stability over temperature. Suitable for automated SMD assembly, they are RoHS compliant and qualified under AEC-Q200. Whether for high-frequency or high-voltage environments, these resistors ensure durability, precise resistance tolerance, and low TCR, making them an ideal choice for demanding electronic systems. Purchase online today for fast, secure delivery.
Order your Vishay Series RCS0805 100R high power resistor today and enhance your electronic designs with superior surge and pulse performance.
Frequently Asked Questions
Where can I buy Vishay RCS120647R0FKEA?
You can click on the BUY or RFQ button to purchase RCS120647R0FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS120647R0FKEA?
You can download the RCS120647R0FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS120647R0FKEA?
Vishay
