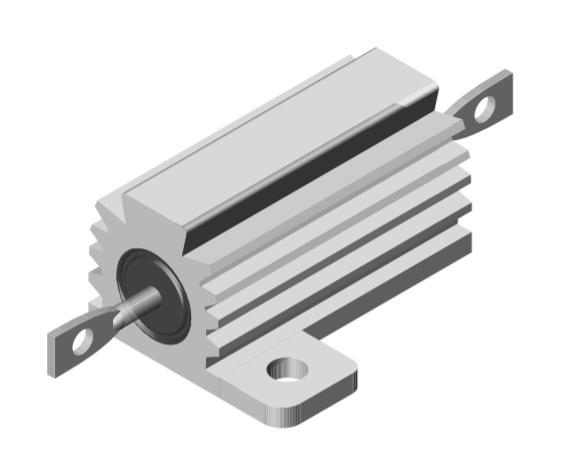

Vishay RH2508R000FJ01 Wirewound Resistor
The product is a high-performance wirewound resistor designed for industrial power applications. Featuring aluminum housing and chassis mounting options, it offers excellent environmental protection and stability with resistance changes less than 1%. Available in both inductive and non-inductive styles, it meets MIL-PRF-18546 standards and is RoHS compliant. Its construction includes copper-nickel or nickel-chrome alloy elements, ceramic cores, and stainless steel end caps, ensuring durability and accuracy across a wide temperature range from -55°C to +250°C. The resistor's power ratings vary depending on the model, with detailed dimensions and mounting specifications provided for reliable integration in complex systems.
Vishay RH2508R000FJ01 Wirewound Resistor Specifications:
- Resistance range: 0.5 to 116K ohms
- Power ratings: 4W to 100W depending on model
- Maximum operating temperature: -55°C to +250°C
- Thermal shock stability: ±0.5%
- Insulation resistance: ≥10,000 MΩ dry, ≥1,000 MΩ after moisture test
- Material: Copper-nickel or nickel-chrome alloy element, ceramic core, aluminum housing
- Housing: Aluminum with hard anodic coating, stainless steel end caps
- Dimensions: Various sizes with detailed inches/mm data for mounting
- Compliance: MIL-PRF-18546 qualified, RoHS
- Vibration and shock resistance as per MIL-STD standards
- Features: Welded construction, environmental protection, Ayrton-Perry non-inductive style option
- Mounting: Chassis with heat-sink effect, stainless steel nuts, threaded holes
- Electrical characteristics: Resistance tolerance up to ±1%, temperature coefficient around 20-50 ppm/°C depending on model
Buy the Buy Vishay Dale Wirewound Resistor Part Number RH2508R000FJ01 Online
Order the Vishay Dale wirewound resistor RH2508R000FJ01 online today for a robust, high-performance component suitable for demanding industrial power applications. Its aluminum housing and chassis mount design ensure excellent environmental protection and heat dissipation, making it ideal for critical systems requiring stability under extreme conditions. With MIL-PRF-18546 qualification and RoHS compliance, this resistor guarantees durability, precise resistance, and reliable operation over a wide temperature range from -55°C to +250°C. Purchase now to ensure your project benefits from top-tier quality and consistent performance.
Buy Vishay Dale RH2508R000FJ01 now and experience unmatched reliability and performance with durable aluminum housing and MIL standards compliance.
