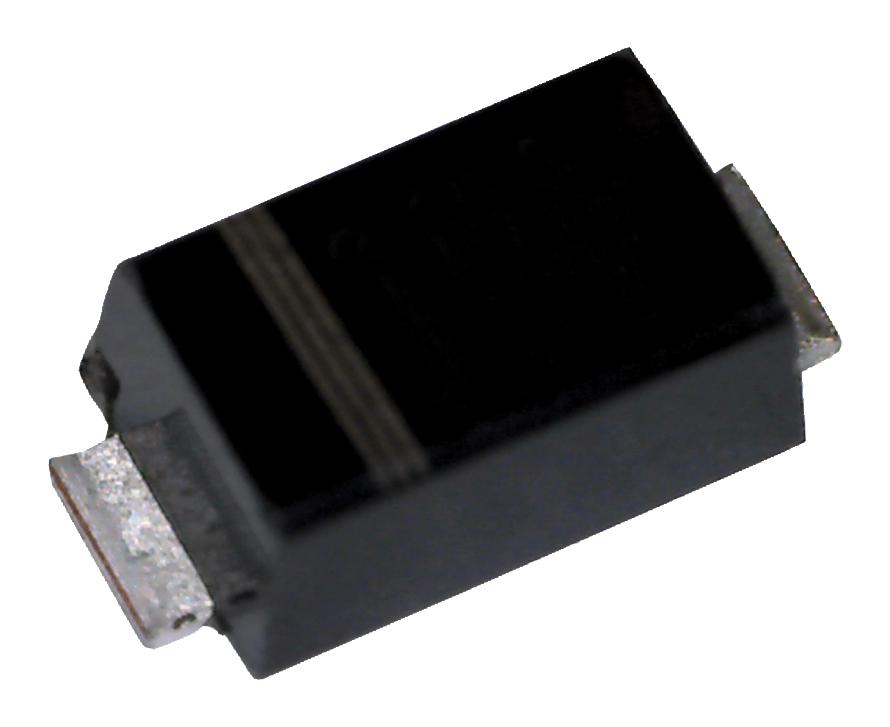

Vishay S07MGS18 High Voltage Rectifier
The S07MGS18 is a high-voltage surface mount recovery rectifier from Vishay's eSMP® series, suitable for automated assembly with a low-profile package. It features glass passivation, meets RoHS and MSL level 1 standards, and is qualified for AEC-Q101. Designed for reliable operation in power rectification, this rectifier tolerates a maximum repetitive peak reverse voltage of 1000 V and can handle a forward current of 15 A. Its mechanical and thermal characteristics ensure durability, with mounting on epoxy substrates and efficient heat dissipation.
Vishay S07MGS18 High Voltage Rectifier Specifications:
- Maximum repetitive peak reverse voltage: 100 V to 1000 V depending on model
- Maximum RMS voltage: 280 V to 700 V depending on model
- Maximum DC blocking voltage: 100 V to 1000 V depending on model
- Average forward rectified current: 15 A
- Peak forward surge current: 25 A for 8.3 ms single half sine wave
- Package: SMF (DO-219AB), low profile surface mount
- Material: Glass passivated junction, RoHS compliant
- Thermal resistance junction to ambient: approx. 180 K/W
- Operating temperature range: -65°C to +175°C
- Wave and reflow solderable, meets JESD 201 class 2 whisker test
- Package weight: approx. 15 mg
- Dimensions: 0.85 mm x 0.35 mm x 0.1 mm for the case
Buy the Vishay Series eSMP High Voltage Rectifier: S07MGS18
Purchase the Vishay S07MGS18 high-voltage surface mount rectifier online today. With a maximum repetitive peak reverse voltage of 1000 V and 15 A forward current capacity, it’s ideal for power supply, automation, and industrial electronics. Its compact low-profile package facilitates easy automation and reliable mounting. Suitable for wave and reflow soldering, this diode meets RoHS and AEC-Q101 standards, ensuring compliance and durability in demanding environments. Upgrade your power systems with Vishay’s trusted rectifier solution today.
Buy Vishay S07MGS18 now and experience unmatched reliability and high voltage power rectification in surface mount applications.
Frequently Asked Questions
Where can I buy Vishay S07MGS18?
You can click on the BUY or RFQ button to purchase S07MGS18 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part S07MGS18?
You can download the S07MGS18 datasheet or visit the Vishay website for support.
Who is the manufacturer of S07MGS18?
Vishay
