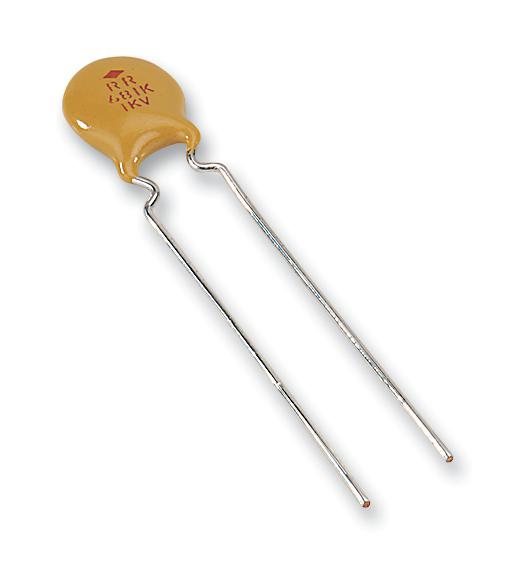

Vishay S103Z43Y5VN6TJ5R High-Voltage Ceramic Capacitors
The S Series ceramic capacitors are high-voltage, surface-mount components designed for general-purpose applications including temperature compensation, coupling, and bypassing. They feature various dielectric types like Y5V, Y5P, Z5U, X7R, and X5F, with voltage ratings up to 6 kV. These capacitors are available in multiple capacitance ranges from 10 pF to 33,000 pF, with sizes including 25mm, 29mm, 33mm, and 39mm diameters. Lead configurations include straight or kinked leads with spacing options of 5.0mm, 6.4mm, 7.5mm, and 10.0mm, coated with epoxy resin for durability and UL 94 V-0 compliance.
Vishay S103Z43Y5VN6TJ5R High-Voltage Ceramic Capacitors Specifications:
- Capacitance Range: 10 pF to 33,000 pF
- Voltage Ratings: 1 kV to 6 kV (peak), 1000 VDC / 2000 VDC / 3000 VDC / 6000 VDC depending on dielectric type
- Dielectric Types: Y5V, Y5P, Z5U, X7R, X5F
- Size: 25mm, 29mm, 33mm, 39mm diameters
- Lead Diameter: 0.6 mm ±0.05 mm
- Lead Spacing: 5.0 mm, 6.4 mm, 7.5 mm, 10.0 mm
- Lead Styles: Straight or kinked leads
- Coating: Epoxy resin compliant with UL 94 V-0
- Temperature Range: -55°C to +125°C for some dielectrics, -30°C to +125°C for others
- Capacitance Tolerance: ±5%, ±10%, ±20%
- Insulation Resistance: ≥10 GΩ
- Dissipation Factor: Max 0.1 for sizes >30 pF, up to 5% for others
- Certifications: RoHS compliant, UL listed
- Packaging: Bulk, reel, ammo
- Marking: Capacitance value, tolerance, voltage, size
- Environmental: Climatic category D (according to EN 60058-1)
