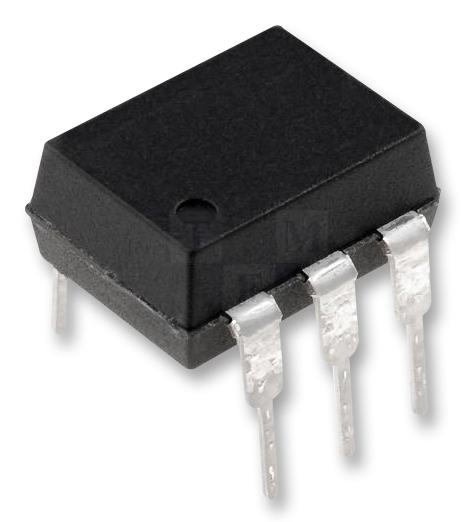

Vishay SFH6003 Optocoupler
The SFH600 is an optocoupler with a GaAs LED emitter and a silicon planar phototransistor detector, providing electrical isolation between circuits. Packaged in a plastic plug-in case, it transmits signals across insulation barriers with a maximum test voltage of 5300 V. Designed for stable long-term operation, it conforms to VDE, UL, CSA, and IEC standards, featuring RoHS compliance and a lead-free construction. Suitable for applications requiring high isolation, switching, and signal transfer in industrial and electronic systems.
Vishay SFH6003 Optocoupler Specifications:
- Isolation test voltage (1.0 s): 5300 Vams
- Veesat: 0.25 V at Ip=10 mA, Ic=2.5 mA
- Storage temperature: -55°C to +150°C
- Operating temperature: -55°C to +100°C
- Lead (Pb)-free, RoHS compliant
- Collector emitter voltage: 70 V
- Collector current: 50 mA
- Total power dissipation: 100 mW
- Package types: DIP-6, SMD-6
- Isolation resistance: >10% RIo at 500 V
- Junction temperature max.: 108°C
- Soldering temp. (wave): >1.5 mm: 260°C
- Capacitance input/output: 0.6 pF
- Current transfer ratio (CTR): 40-80%, 63-125%, 100-200%, 160-320%
- Switching times: Rise 2 μs, Fall 25 μs (non-saturated)
- Pulse current: 25 A surge (10 μs)
- Peak voltage: 70 V (collector-emitter)
- Insulation clearance: 37 mm, thickness: 20.4 mm
Buy the Vishay Series SFH Series Optocoupler: SFH6003
Purchase the Vishay SFH6003 optocoupler online today. Its GaAs LED and phototransistor ensure high electrical isolation of up to 5300 V. Suitable for industrial, automation, and electronic applications, this robust device offers long-term stability, RoHS compliance, and a lead-free design. Ideal for signal transfer between circuits while providing safety and reliability. Order now and enhance your projects with this high-quality, high-performance optocoupler that guarantees precise operation and durable performance in challenging environments.
Get Vishay SFH6003 today—built for high isolation and reliable signal transfer in electronic systems.
Frequently Asked Questions
Where can I buy Vishay SFH6003?
You can click on the BUY or RFQ button to purchase SFH6003 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SFH6003?
You can download the SFH6003 datasheet or visit the Vishay website for support.
Who is the manufacturer of SFH6003?
Vishay
