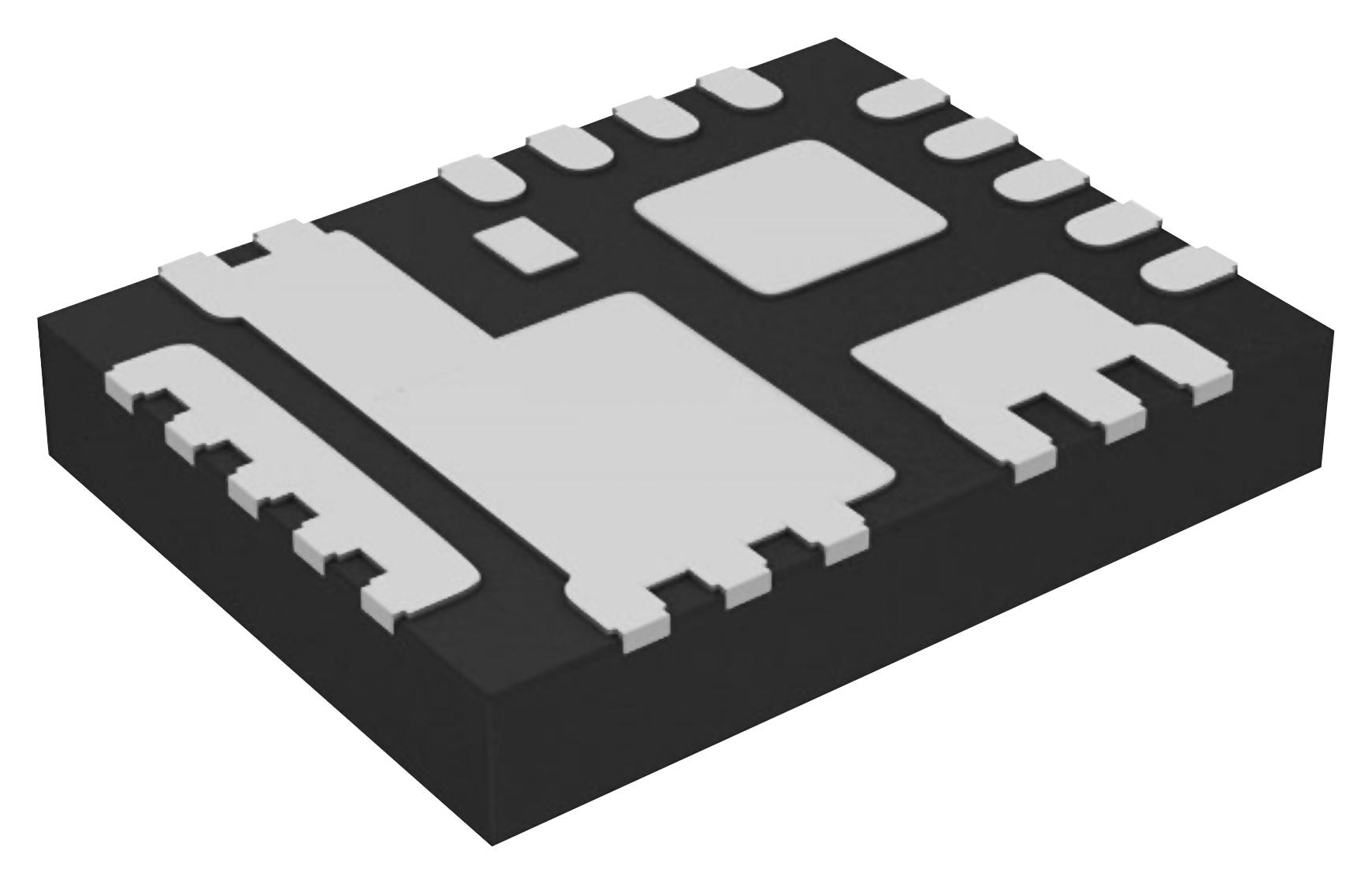

Vishay SIC530CDT1GE3 High-Current Power Stage
The SiC530 is an integrated power stage designed for high-current, high-efficiency synchronous buck applications. Packaged in Vishay’s compact 4.5 mm x 3.5 mm MLP package, it delivers up to 30 A continuous current per phase and features Vishay's Gen IV TrenchFET technology that reduces losses. Its advanced internal MOSFET gate driver includes adaptive dead-time, bootstrap Schottky diode, and zero current detection, optimizing performance. Suitable for CPU, GPU, memory VRDs, and DC/DC modules, it supports high-frequency operation up to 2 MHz, low standby power, and system standby modes such as PS4.
Vishay SIC530CDT1GE3 High-Current Power Stage Specifications:
- Packaged in Vishay’s 4.5 mm x 3.5 mm MLP package
- Continuous current: 30 A, peak 40 A at 10 ms
- High efficiency, supports up to 2 MHz switching frequency
- Gen IV TrenchFET technology reduces conduction and switching losses
- Integrated MOSFET gate driver with adaptive dead-time control
- Includes bootstrap Schottky diode, zero current detect, tri-state PWM support
- Supports diode emulation (ZCD_EN#), PS4 mode for low power standby
- Operating Voltage: 0.3 to +25 V input, VSW up to 32 V
- Temperature range up to 150°C junction, -65°C to +150°C storage
- Power ON reset, undervoltage lockout, thermally enhanced package
Buy the Vishay Series VRPower Integrated Power Stage: SiC530
Discover the Vishay Series VRPower SiC530, a compact integrated power stage capable of delivering up to 30 A current. Featuring Vishay's innovative Gen IV TrenchFET technology, it ensures high efficiency and low thermal losses. Perfect for CPU, GPU, and memory VRDs, this device supports high switching frequencies up to 2 MHz and low standby power modes, including PS4. Its advanced features such as adaptive dead-time, diode emulation, and integrated bootstrap diode make it ideal for demanding digital power systems. Purchase online now for reliable, high-performance power regulation.
Order your Vishay Series VRPower SiC530 today and upgrade your high-current power conversion projects with our efficient, compact integrated solutions.
Frequently Asked Questions
Where can I buy Vishay SIC530CDT1GE3?
You can click on the BUY or RFQ button to purchase SIC530CDT1GE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SIC530CDT1GE3?
You can download the SIC530CDT1GE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of SIC530CDT1GE3?
Vishay
