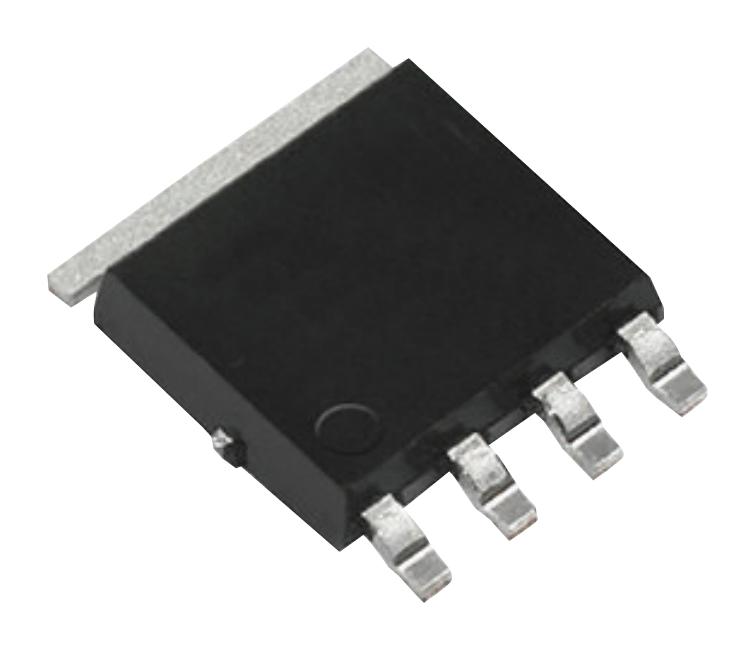

Vishay SIHJ690N60ET1GE3 Power MOSFET
The Vishay Siliconix SiHJ690N60E is a high-performance N-channel Power MOSFET designed for switch mode power supplies, flyback converters, and lighting applications. Featuring 4th generation E series technology, it offers low on-resistance, reduced switching losses, avalanche energy rating, and RoHS compliance. The PowerPAK SO-8L package ensures efficient thermal management and compact installation, making it suitable for high-current switching in industrial, consumer, and lighting equipment. Its reliable, halogen-free construction supports environmentally conscious designs and robust circuit performance.
Vishay SIHJ690N60ET1GE3 Power MOSFET Specifications:
- Package: PowerPAK SO-8L
- Drain-source voltage Vos: 600 V
- Gate-source voltage Ves: +30 V
- Continuous drain current Ib (at 100°C): 3.5 A
- Pulsed drain current: rated for high transient operations
- Maximum power dissipation Pp: 48 W
- Operating junction temperature range: -55°C to +150°C
- Thermal resistance junction-to-ambient: 65°C/W
- Maximum junction-to-case resistance: 2.6°C/W
- Drain-source on-resistance Rds(on): 0.60 Ω (at 10 V, 25°C)
- Gate charge Qg: 8 to 12 nC
- Gate-source threshold voltage: 3.0 to 5.0 V
- Capacitances: Ciss ~347 pF, Coss ~24 pF, Crss ~4 pF
- Reverse diode forward voltage: 1.2 V
- Reverse diode continuous forward current: 5.6 A
- Reverse diode recovery time: 292 ns
- Storage temperature: -55°C to +150°C
Buy the Buy Vishay SiHJ690N60E Power MOSFET Part Number SIHJ690N60E Online
Discover the Vishay SiHJ690N60E Power MOSFET, engineered for high-current switching in power supplies and lighting applications. This robust, halogen-free MOSFET features a 600 V drain-source voltage, low Rds(on), and excellent thermal performance. Its compact PowerPAK SO-8L package makes it suitable for space-constrained designs, delivering superior efficiency and reliability. Perfect for industrial, consumer, and lighting equipment, this device ensures reduced losses and dependable operation in demanding environments. Purchase online today to enhance your power management circuits.
Order your Vishay SeriesSIHJ690N60E high-current Power MOSFET today and ensure reliable, efficient switching for your power supply designs.
Frequently Asked Questions
Where can I buy Vishay SIHJ690N60ET1GE3?
You can click on the BUY or RFQ button to purchase SIHJ690N60ET1GE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SIHJ690N60ET1GE3?
You can download the SIHJ690N60ET1GE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of SIHJ690N60ET1GE3?
Vishay
