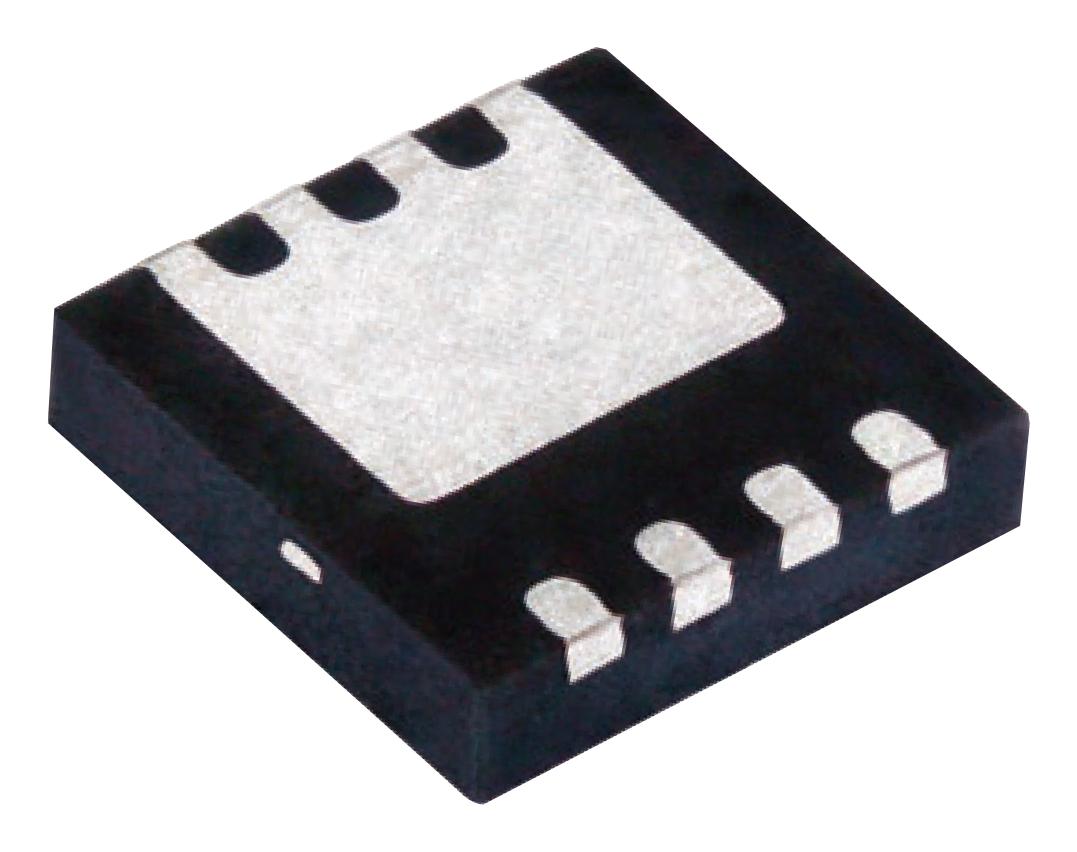

Vishay SISH536DNT1GE3 N-Channel Power MOSFET
The Vishay Siliconix N-Channel MOSFET in PowerPAK 1212-8SH package offers a reliable solution for high-current switching applications. With a voltage rating of 30 V and low Rds(on) of 0.00325 to 0.0046 Ω at Vgs = 10 V, it provides efficient power management for DC/DC converters, load switches, and battery management systems. The device features excellent thermal performance, high pulsed current capability, and RoHS compliance, making it ideal for compact, high-density electronic designs in industrial and consumer electronics.
Vishay SISH536DNT1GE3 N-Channel Power MOSFET Specifications:
- Drain-source voltage: 30 V
- Gate-source voltage: +16 / -12 V
- Continuous drain current at 25°C: 67.4 A
- Pulsed drain current: 200 A
- Maximum power dissipation at 25°C: 2.366 W
- Junction temperature range: -55°C to +150°C
- Body diode forward voltage: 0.76 V at 5A
- Gate charge: 76 to 115 nC
- On-resistance: 0.0038 to 0.0046 Ω at Vgs = 4.5 V to 10 V
- Thermal resistance junction-to-ambient: max 35°C/W
- Soldering temperature: peak 260°C
- Package: PowerPAK 1212-8SH, lead (Pb)-free, halogen-free
Buy the Vishay SISH536DN – Reliable Power MOSFET for Industrial Applications
Enhance your electronic projects with the high-quality Vishay Power MOSFET series. Featuring 30 V voltage, low Rds(on), and robust current handling, this device ensures efficient and reliable power switching for industrial and consumer electronics. Its compact PowerPAK package offers excellent thermal performance, easy mounting, and RoHS compliance. Perfect for DC/DC converters, load switches, and battery management, it guarantees high efficiency, stability, and durability. Order online today and upgrade your power management systems with this trusted component.
Order your Vishay SeriesSISH536DN 30 V N-Channel MOSFET today and enhance your high-current power switching designs with reliable performance and efficient thermal management.
Frequently Asked Questions
Where can I buy Vishay SISH536DNT1GE3?
You can click on the BUY or RFQ button to purchase SISH536DNT1GE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SISH536DNT1GE3?
You can download the SISH536DNT1GE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of SISH536DNT1GE3?
Vishay
