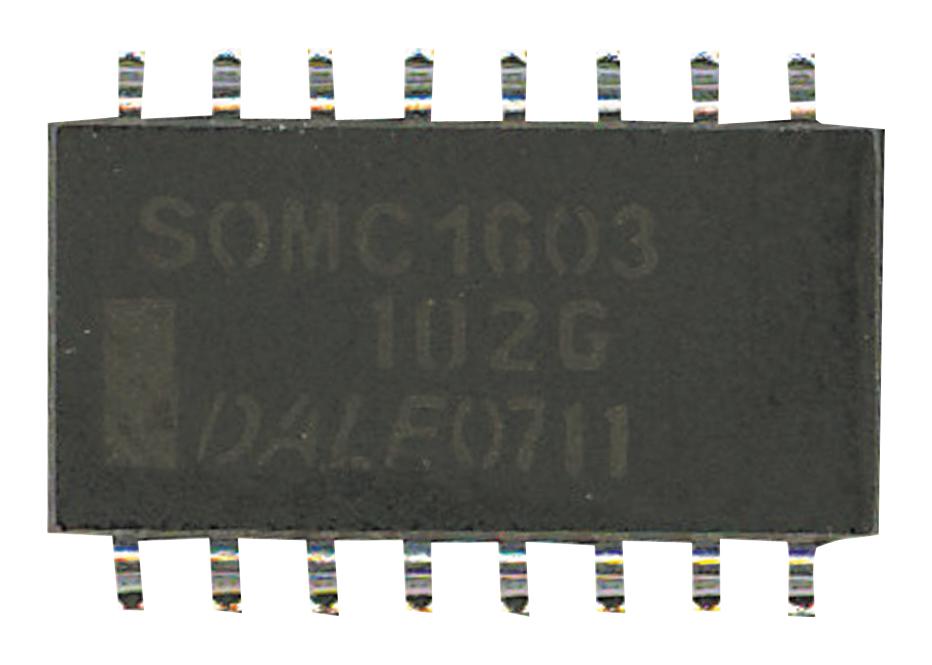

Vishay SOMC160347K0GEA Resistor Network
Vishay Dale offers high-quality thick film resistor networks, available in dual-in-line, surface mount, and molded DIP packages. These resistor networks feature isolated, bussed, and dual terminator configurations that support automatic surface mounting and reflow soldering. With power ratings up to 0.16W and resistance ranges from 10Ω to 2.2MΩ, they provide reliable performance in various applications including pull-ups, line termination, pulse squaring, and impedance balancing. Their durable construction ensures stability across temperature ranges from -55°C to +150°C, meeting industry standards for electrical resistance and insulation resistance, making them ideal for demanding electronic circuits.
Vishay SOMC160347K0GEA Resistor Network Specifications:
- Power Rating: 0.08W, 0.16W
- Resistance Range: 10Ω to 2.2MΩ
- Temperature Range: -55°C to +150°C
- Peak Insulation Voltage: 200V
- Rated Voltage: Up to 50V
- Tolerance: ±1%, ±2%, ±5%
- Material: Molded epoxy with thick film resistive elements
- Dimensions vary with pin count: 14, 16, or 20 pins; typical dimensions include a body length of 9.91mm to 13.72mm, width approx. 7.62mm, with solder pad dimensions in millimeters.
- Reflow temperature: Max +255°C, solder dipped terminals, copper alloy terminals
- Certifications: RoHS-compliant, MIL-STD-202 tested for durability
- Application: Pull-up/pull-down, impedance balancing, LED current limiting, line termination, pulse squaring
Buy the Vishay Series SOMC Resistor Networks: SOMC160347K0GEA
Purchase the Vishay SOMC160347K0GEA resistor network online today. Designed for high reliability and efficiency, this surface-mount resistor network ensures stable performance in demanding electronics applications. Whether you need it for pull-up, line termination, or pulse squaring, this durable component offers excellent resistance stability across a wide temperature range. With RoHS compliance and precise manufacturing standards, it guarantees quality, easy installation, and compatibility with automated soldering equipment. Enhance your circuit design with this reliable, high-performance resistor network available for quick online ordering.
Get Vishay SOMC160347K0GEA resistor network today—built for precision, durability, and optimal circuit performance.
Frequently Asked Questions
Where can I buy Vishay SOMC160347K0GEA?
You can click on the BUY or RFQ button to purchase SOMC160347K0GEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SOMC160347K0GEA?
You can download the SOMC160347K0GEA datasheet or visit the Vishay website for support.
Who is the manufacturer of SOMC160347K0GEA?
Vishay
