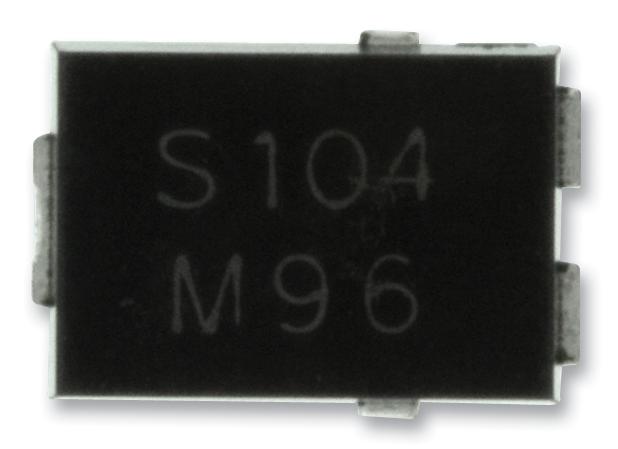

Vishay SS5P6M386A Schottky Diode
The SS5P6 high current surface mount Schottky barrier rectifier is designed for low voltage, high frequency inverter, DC/DC converter, and polarity protection applications. Featuring a very low profile height of approximately 1.1 mm, it is suitable for automated placement and offers low forward voltage drop for high efficiency. The device is RoHS-compliant, halogen-free, and AEC-Q101 qualified, with a maximum repetitive peak reverse voltage of 60 V, average forward current of 5.0 A, and low thermal resistance. It comes in a TO-277A (SMPC) package with matte tin plated leads for soldering conformity.
Vishay SS5P6M386A Schottky Diode Specifications:
- Maximum repetitive peak reverse voltage: 50 V for SS5P5, 60 V for SS5P6
- Maximum average forward rectified current: 5.0 A
- Peak forward surge current: 150 A
- Operating junction temperature range: -55°C to +150°C
- Thermal resistance (junction to ambient): 65°C/W
- Case: TO-277A (SMPC), halogen-free, RoHS-compliant
- Material: Matte tin plated leads, solderable per J-STD-002
- Maximum instantaneous forward voltage: 0.631 V at 2.5 A, 25°C
- Maximum reverse current: 15 mA at 125°C
- Typical junction capacitance: 200 pF at 4.0 V, 1 MHz
- Dimensions: Standard TO-277A outline with specific measurements detailed in datasheet
- Mechanical features include low profile of approximately 1.1 mm height, compatible with automated assembly
Buy the Vishay SS5P6 – Reliable Schottky Barrier Diode for Industrial Applications
Purchase the Vishay SS5P6 high current surface mount Schottky barrier diode online today to ensure your electronic projects benefit from low forward voltage, high efficiency, and reliable performance. Designed for low voltage, high frequency inverter, and polarity protection applications, this device features a very low profile of approximately 1.1 mm height, making it perfect for automated assembly. Its halogen-free, RoHS-compliant construction and AEC-Q101 qualification guarantee suitability for automotive and industrial environments. Order now for fast delivery and trusted quality.
Order your Vishay SS5P6 high current Schottky diode today and ensure dependable performance for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay SS5P6M386A?
You can click on the BUY or RFQ button to purchase SS5P6M386A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SS5P6M386A?
You can download the SS5P6M386A datasheet or visit the Vishay website for support.
Who is the manufacturer of SS5P6M386A?
Vishay
