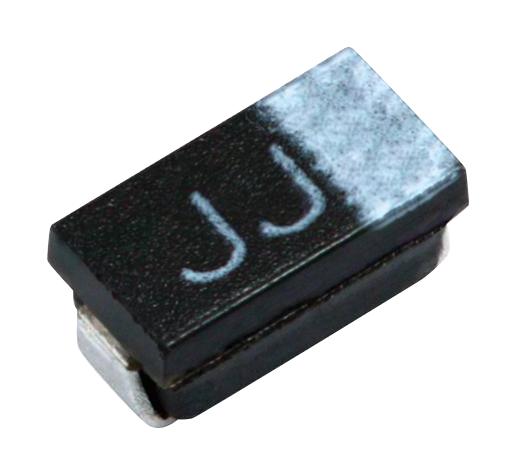

Vishay T55A476M6R3C0500 Polymer Surface-Mount Capacitor
The T55A476M6R3C0500 is a high-performance polymer surface-mount chip capacitor designed for decoupling, filtering, and energy storage in electronic devices. It features ultra-low ESR, high ripple current capacity, and stable capacitance across wide temperature ranges from -55°C to +105°C. The capacitor is RoHS compliant, with termination options including 100% tin or Ni/Pd/Au, and molded in various case sizes for versatile applications in smartphones, automotive, and industrial equipment. It ensures reliable operation in high-frequency circuits with surge current testing and moisture resistance.
Vishay T55A476M6R3C0500 Polymer Surface-Mount Capacitor Specifications:
- Capacitance: 47 µF
- Voltage Rating: 50 V at +105°C
- Operating Temperature: -55°C to +105°C
- ESR: Very low at 0.81 ohms at 120Hz
- Dissipation Factor: Typical 0.90 at 120Hz
- Leakage Current: Not exceeding 300% of initial limit
- Case Dimensions: L=0.228 inches (5.8 mm), W=0.126 inches (3.2 mm), H=0.100 inches (2.5 mm)
- Terminations: Cases C, J, P: 100% tin; Cases A, T, B, Z, V, D: Ni/Pd/Au
- Moisture Sensitivity Level: 3
- Surge Current Tested, RoHS Compliant, Suitable for high-frequency applications
- Power Dissipation: Max 0.187 W in free air at < +45°C
- Reflow Soldering: Max peak temperature 260°C, duration ≤ 8 seconds
- Package Quantity: 2000 units per reel for case D
Buy the Vishay T55A476M6R3C0500 – Reliable Energy Storage Capacitor for Industrial Applications
Order the Vishay T55A476M6R3C0500 polymer surface-mount capacitor online today to elevate your electronic projects. With ultra-low ESR, high ripple current capacity, and stable capacitance across -55°C to +105°C, this high-performance component ensures reliability in decoupling, filtering, and energy storage applications. Its RoHS compliance and robust termination options make it suitable for smartphones, industrial equipment, and networking devices. Trusted for its durability and consistent performance, buy online now for quick delivery and superior circuit performance.
Get Vishay T55A476M6R3C0500 today—built for precise filtering and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy Vishay T55A476M6R3C0500?
You can click on the BUY or RFQ button to purchase T55A476M6R3C0500 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part T55A476M6R3C0500?
You can download the T55A476M6R3C0500 datasheet or visit the Vishay website for support.
Who is the manufacturer of T55A476M6R3C0500?
Vishay
