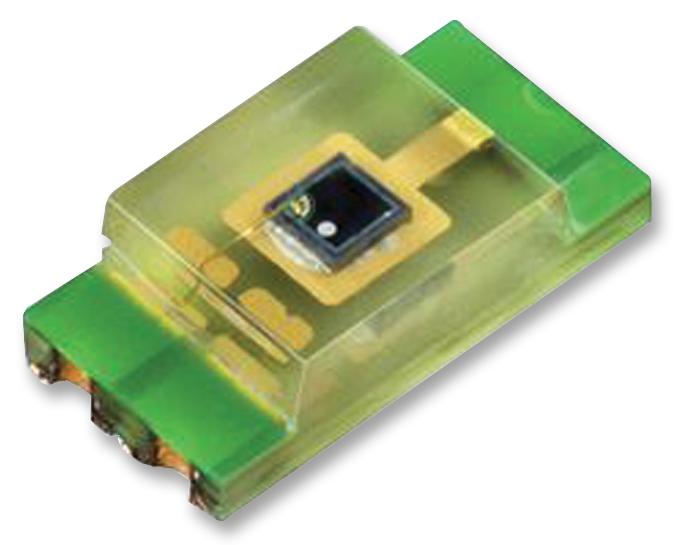

Vishay TEMT6000X01 Ambient Light Sensor
The TEMT6000X01 is a silicon NPN phototransistor ambient light sensor in a compact 1206 package, capable of detecting visible light with peak sensitivity at 570nm. Its high phot sensitivity, wide spectral range from 440 to 800nm, and adjustable angle of half sensitivity (60°) make it ideal for display backlight dimming, keypad illumination, automotive sensors, mobile phones, and industrial lighting controls. RoHS compliant, with lead-free reflow soldering, this sensor ensures reliable performance in surface-mount applications with dimensions of 4 x 2 x 1.05 mm.
Vishay TEMT6000X01 Ambient Light Sensor Specifications:
- Package type: surface mount
- Package form: 1206
- Dimensions (L x W x H): 4 x 2 x 1.05 mm
- Peak sensitivity: 570 nm
- Spectral bandwidth: 440 to 800 nm
- Sensitivity angle: 60°
- High photo sensitivity
- RoHS compliant
- Lead-free reflow soldering
- Maximum collector-emitter voltage: 6 V
- Maximum emitter-collector voltage: 15 V
- Collector current: 20 mA
- Power dissipation: 100 mW
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Junction temperature: 100°C
- Thermal resistance junction/ambient: 450 K/W
- Floor life: 168 hours at 30°C, 60% RH
Buy the Vishay Series Ambient Light Sensor: TEMT6000X01
Purchase the Vishay Series TEMT6000X01 ambient light sensor online to benefit from its high sensitivity to visible light at 570nm. This compact surface-mount device in a 1206 package is ideal for display backlight dimming, keypad illumination, automotive sensors, and industrial lighting control. RoHS compliant and lead-free, it offers reliable performance with specifications including a spectral range of 440 to 800nm, sensitivity angle of 60°, and maximum voltages of 6V and 15V. Get yours now for seamless integration into your projects.
Order your Vishay Series TEMT6000X01 ambient light sensor today and enhance your display and lighting control projects with dependable quality.
Frequently Asked Questions
Where can I buy Vishay TEMT6000X01?
You can click on the BUY or RFQ button to purchase TEMT6000X01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TEMT6000X01?
You can download the TEMT6000X01 datasheet or visit the Vishay website for support.
Who is the manufacturer of TEMT6000X01?
Vishay
