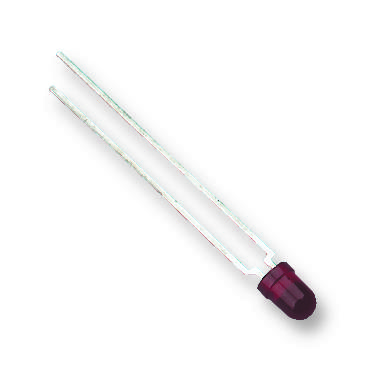

Vishay TLHR4200 Red Indicator LED
The TLHR4200 is a high-efficiency red LED in a 3 mm tinted non-diffused package, ideal for indicator and lighting applications. It features a wide viewing angle of ±22°, low forward voltage of around 2.3 V at 20 mA, and a maximum reverse voltage of 6 V. Designed for DC operation, it can handle a forward current of up to 30 mA and withstand temperatures from -40°C to +100°C. Its compact design and clear visuals make it suitable for general signaling, background illumination, and status lights.
Vishay TLHR4200 Red Indicator LED Specifications:
- Package: 3mm tinted plastic
- Color: Red
- Luminous Intensity: 8-15 mA, 4-10 cd
- Wavelength: 612-625 nm
- Forward Voltage: 2.3 V at 20 mA
- Reverse Voltage: 6 V
- DC Forward Current: 30 mA
- Peak Surge Current: 1 A
- Junction Temperature: 100°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Soldering Temperature: 260°C for 5 seconds at 2 mm from body
- Thermal Resistance Junction/Ambient: 400 K/W
Buy the Vishay Series LED: TLHR4200 Red Indicator Light
Get the Vishay Series TLHR4200 red LED online today to upgrade your signaling and lighting systems. This compact, high-efficiency LED offers wide viewing angles, low forward voltage, and excellent durability. Perfect for status lights, background illumination, and general indicator uses, it operates at a maximum of 30 mA and withstands temperatures from -40°C to +100°C. Its robust design ensures reliable performance in diverse environments, making it an essential component for professional electronic and lighting applications.
Order your Vishay Series TLHR4200 red LED today and enhance your indicator and lighting projects with reliable, high-quality illumination solutions.
Frequently Asked Questions
Where can I buy Vishay TLHR4200?
You can click on the BUY or RFQ button to purchase TLHR4200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TLHR4200?
You can download the TLHR4200 datasheet or visit the Vishay website for support.
Who is the manufacturer of TLHR4200?
Vishay
