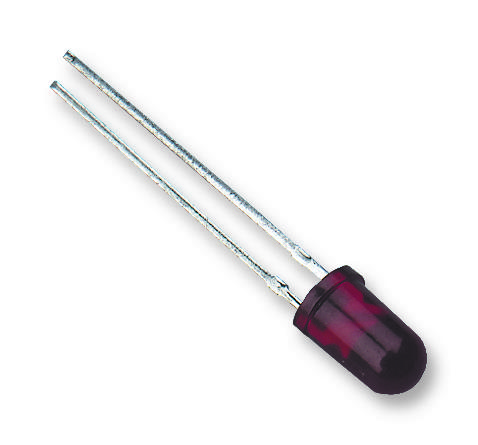

Vishay TLUR5401 Red Indicator LED
The TLUR5401 is a red LED in a standard 5mm diffused package designed for general indication and lighting applications. Suitable for both DC and pulse operation, it offers a luminous intensity of 15 mcd typical at 10 mA. The device features a dominant wavelength of 630 nm, forward voltage of 2 V, and can operate at temperatures from -40°C to +100°C. It is RoHS compliant, with a maximum reverse voltage of 6 V and surge forward current of 1 A. The LED's optical and electrical specifications make it ideal for indicator lights, displays, and signaling in various industrial and commercial environments.
Vishay TLUR5401 Red Indicator LED Specifications:
- Material categorization: RoHS
- Package: 5mm diffused
- Color: Red
- Luminous Intensity: 15 mcd typical at 10 mA
- Wavelength: 630 nm (typical)
- Forward Voltage: 2 V at 20 mA
- Reverse Voltage: 6 V
- Surge Forward Current: 1 A for less than 10 μs
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Maximum Power Dissipation: 60 mW
- Junction Temperature: 100°C
- Soldering Temperature: 260°C for 5 seconds
- Thermal Resistance Junction/Ambient: 500 K/W
- Peak Wavelength: 640 nm
- Angle of Half Intensity: +30°
Buy the Vishay TLUR5401 – Reliable Red LED for Industrial Applications
Order the Vishay TLUR5401 red indicator LED online today to ensure your industrial, lighting, or signaling projects benefit from high-quality, reliable illumination. Crafted for versatility, this 5mm diffused LED provides a luminous intensity of 15 mcd, with a wavelength of 630 nm, low forward voltage, and excellent temperature stability. Perfect for indicator lights, displays, and signaling systems, it features RoHS compliance and robust electrical specifications for durable performance. Purchase now for fast delivery and dependable operation across diverse environments.
Get Vishay TLUR5401 today—built for precision, brightness, and long-lasting durability in indication and lighting systems.
Frequently Asked Questions
Where can I buy Vishay TLUR5401?
You can click on the BUY or RFQ button to purchase TLUR5401 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TLUR5401?
You can download the TLUR5401 datasheet or visit the Vishay website for support.
Who is the manufacturer of TLUR5401?
Vishay
