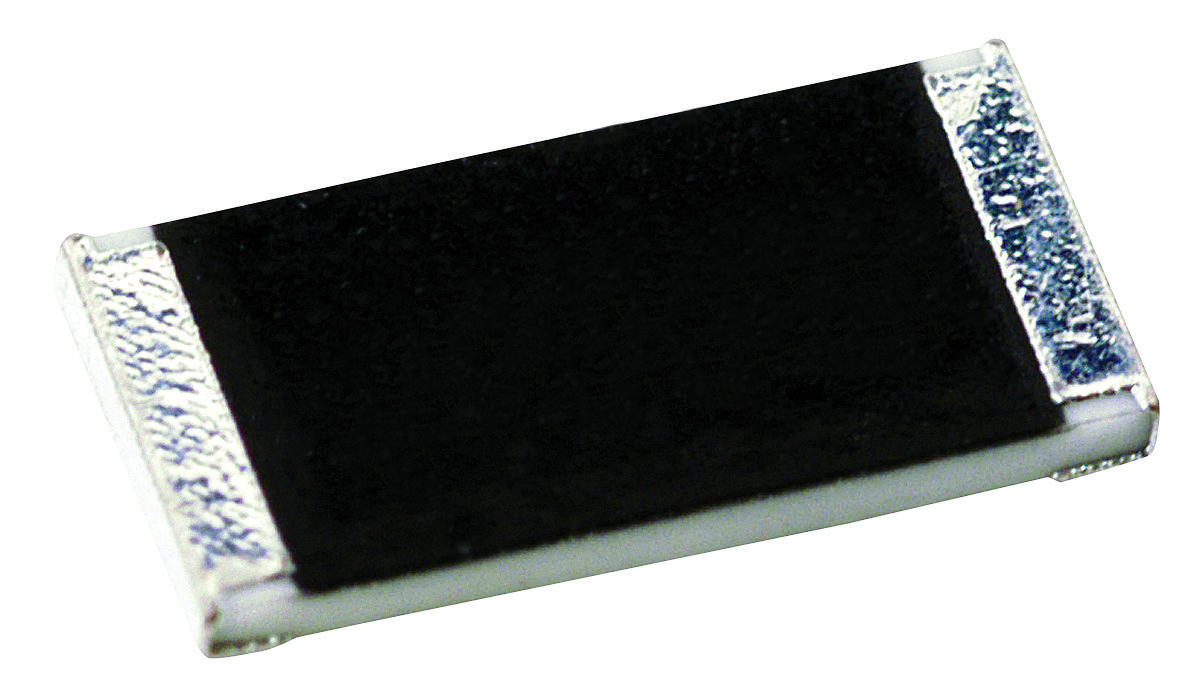

Vishay TNPW040249R9BEED Precision Thin Film Resistor
High stability thin film flat chip resistor designed for precision applications in modern electronics. Suitable for test equipment, medical devices, industrial, and automotive industries, these resistors feature excellent moisture resistivity, stability under varying environmental conditions, and sulfur resistance. Sizes range from 0402 to 1210 with resistance tolerances as low as 0.1%, and operate within a temperature range of -85°C to 155°C. Rated power varies from 0.100 W to 0.500 W, with high reliability, low resistance drift, and compliance with RoHS and AEC-Q200 standards, ensuring durability and precise performance in demanding environments.
Vishay TNPW040249R9BEED Precision Thin Film Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206, 1210
- Resistance range: 10Ω to 100kΩ, 4.7Ω to 33.2kΩ, 47Ω to 1MΩ, 47Ω to 2MΩ, 10Ω to 3.01MΩ
- Tolerance: ±1%, ±0.5%, ±0.1%
- Temperature coefficient: +50 ppm/K, +25 ppm/K, +15 ppm/K, +10 ppm/K
- Rated dissipation: 0.100 W to 0.500 W depending on size
- Operating voltage: 50V to 200V
- Maximum film temperature: 125°C to 155°C
- Operating temperature range: -85°C to 155°C
- Resistance change at rated power: <0.05% to 0.30% over 225,000 hours
- Compliance: RoHS, AEC-Q200 qualified
- Materials: High Stability Thin Film Technology
- Features: Excellent moisture, sulfur resistance, stability, and low drift
- Suitable for precision applications in medical, industrial, and automotive electronics
Buy the Vishay TNPW0402 e3 – Reliable Precision Resistor for Industrial Applications
Purchase Vishay TNPW0402 e3 online today and experience the high stability, low resistance drift, and exceptional environmental resilience that make these resistors ideal for medical, industrial, and automotive electronic applications. Designed with advanced thin film technology, these resistors ensure reliable long-term performance in critical systems. With a compact size and wide resistance range, they are perfect for precision circuits requiring consistent and accurate resistance values under challenging conditions. Order now and secure dependable high-quality components for your electronic projects.
Get Vishay TNPW0402 e3 today—built for precision and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy Vishay TNPW040249R9BEED?
You can click on the BUY or RFQ button to purchase TNPW040249R9BEED from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW040249R9BEED?
You can download the TNPW040249R9BEED datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW040249R9BEED?
Vishay
