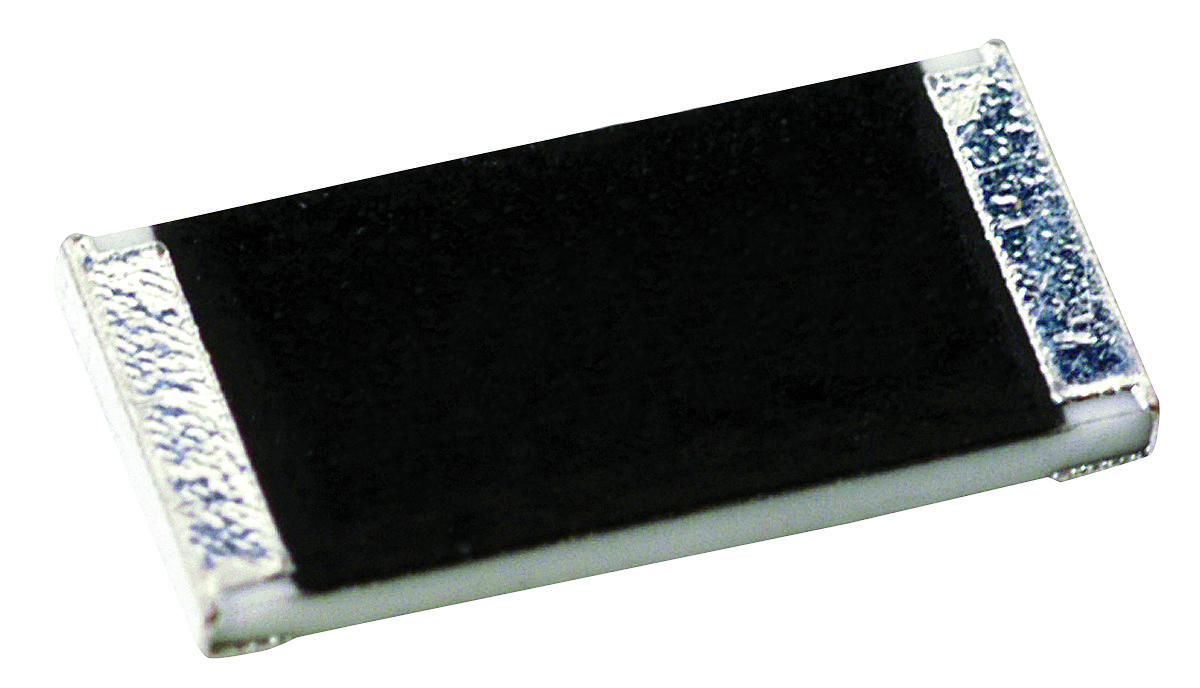

Vishay TNPW06033K01BEEN Precision Resistor
The TNPW0603 e3 is a high stability thin film flat chip resistor designed for demanding electronic applications requiring precise resistance and excellent environmental stability. It offers resistance ranges from 47 Ω to 332 kΩ with tight tolerances of ±1%, ±0.5%, and ±0.1%. Capable of operating from -85°C to 155°C, it features a maximum dissipation of 0.125 W with an operating voltage of up to 75V. Suitable for industrial, medical, and automotive electronics, it ensures durability and resistance stability over long-term use under various conditions.
Vishay TNPW06033K01BEEN Precision Resistor Specifications:
- Size Code: RR1608M
- Resistance Range: 47 Ω to 332 kΩ
- Resistance Tolerance: ±1%, ±0.5%, ±0.1%
- Temperature Coefficient: + 25 ppm/K
- Rated Dissipation: 0.125 W
- Operating Voltage: Up to 75V
- Operating Temperature Range: -85°C to 155°C
- Maximum Film Temperature: 155°C
- Resistance at 1000 hours: <0.05%
- Resistance at 8000 hours: <0.10%
- Resistance at 225000 hours: <0.30%
- Dimensions: Width 1.55mm, Length 3.2mm, Height 0.45mm, Tolerance ±0.05mm
- Material: High stability thin film
- Compliance: RoHS, AEC-Q200 qualified
Buy the Vishay Series TNPW0603 Precision Resistor: TNPW06033K01BEEN
Purchase the Vishay TNPW0603 e3 resistor today for your electronic projects requiring high stability and reliability. Designed for industrial, medical, and automotive applications, this resistor offers excellent environmental stability and precise resistance ranges from 47 Ω to 332 kΩ. Operating at temperatures from -85°C to 155°C with a maximum dissipation of 0.125 W, it ensures durable performance and long-term stability. Buy online now for fast delivery and to ensure your electronics meet the highest standards of quality and reliability.
Get Vishay TNPW0603 e3 today—built for precision and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy Vishay TNPW06033K01BEEN?
You can click on the BUY or RFQ button to purchase TNPW06033K01BEEN from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW06033K01BEEN?
You can download the TNPW06033K01BEEN datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW06033K01BEEN?
Vishay
