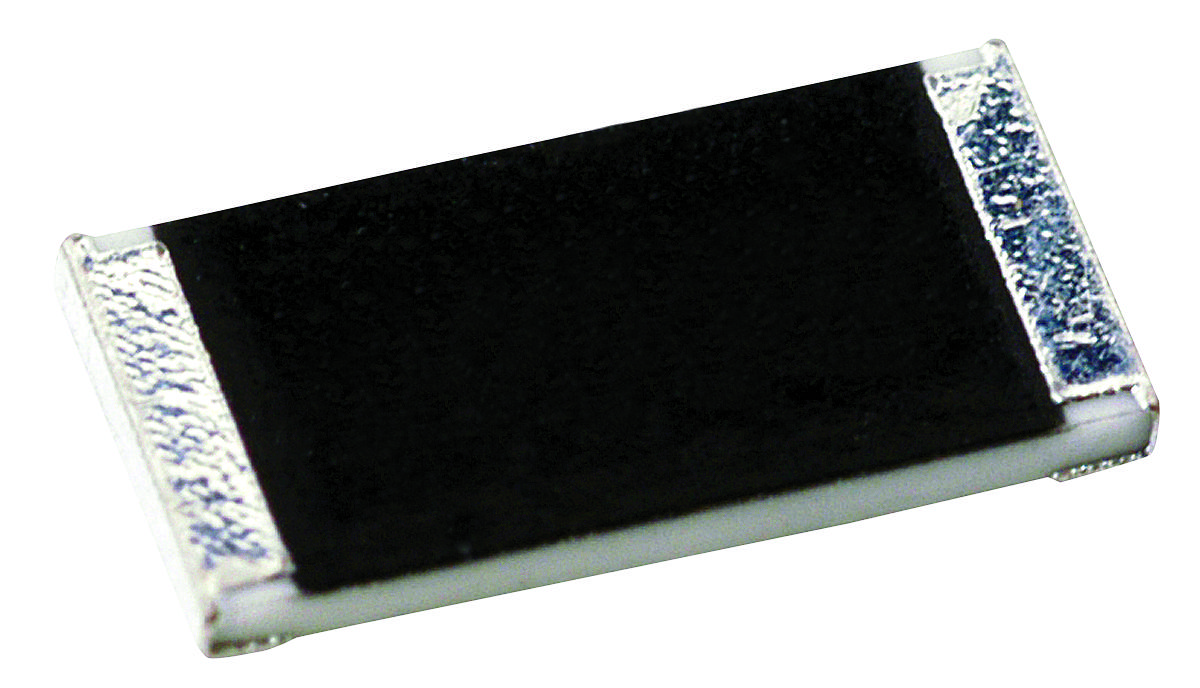

Vishay TNPW08052K49BEEN Thin Film Chip Resistor
The TNPW0805e3 is a high stability thin film flat chip resistor designed for modern electronic applications requiring exceptional reliability and stability. It features low resistance tolerance, a wide resistance range, and excellent moisture resistivity, making it suitable for test, medical, industrial, and automotive equipment. Rated at 0.200 W with a maximum operating voltage of 150V, it withstands temperatures from -85°C to 155°C. Its compact size and durable composition ensure consistent performance in demanding environments, making it an ideal choice for precision circuit design.
Vishay TNPW08052K49BEEN Thin Film Chip Resistor Specifications:
- Size: 0805 (RR2012M)
- Resistance Range: 47Ω to 1MΩ
- Resistance Tolerance: ±1%; ±0.5%; ±0.1%
- Temperature Coefficient: +15 ppm/K
- Rated Dissipation: 0.200 W
- Maximum Operating Voltage: 150V
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -85°C to 155°C
- Permissible Voltage (Insulation): 200V
- Resistance Change (after: 1000h): <0.05%
- Resistance Change (after: 225000h): <0.30%
- Dimensions: Length 2.0 mm, Width 1.25 mm, Height 0.45 mm
- Material: Thin film resistor with stable, moisture-resistant composition
- Application: Precision measurement, medical, industrial, automotive electronics
Buy the Buy Vishay TNPW0805e3 Part Number TNPW0805e3 Online
Enhance your electronic designs with the Vishay TNPW0805e3 high stability thin film chip resistor. Engineered for precision, durability, and moisture resistance, it offers a resistance range of 47Ω to 1MΩ with tight tolerance levels. Its compact size makes it ideal for space-constrained applications in medical, industrial, and automotive equipment. Rated at 0.200 W with a maximum voltage of 150V, this resistor maintains performance over a wide temperature range from -85°C to 155°C, ensuring long-term reliability and consistency in demanding environments.
Buy Vishay TNPW0805e3 now and experience unmatched stability and reliability for your precision electronic applications.
Frequently Asked Questions
Where can I buy Vishay TNPW08052K49BEEN?
You can click on the BUY or RFQ button to purchase TNPW08052K49BEEN from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW08052K49BEEN?
You can download the TNPW08052K49BEEN datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW08052K49BEEN?
Vishay
