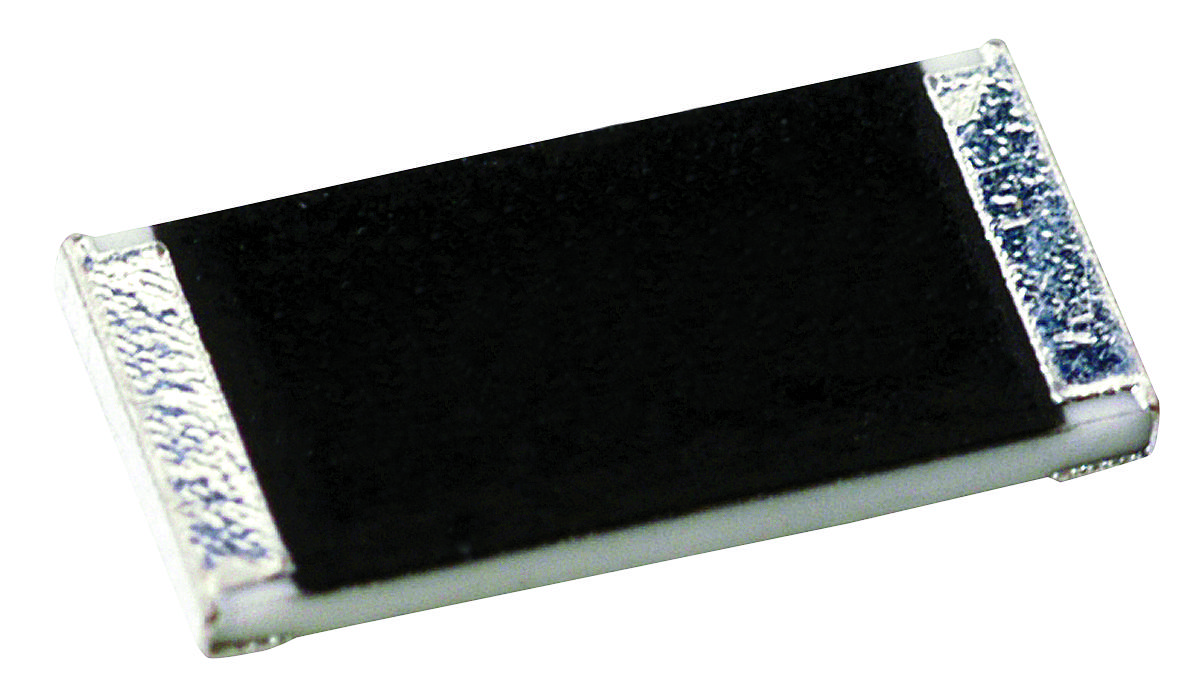

Vishay TNPW08054K02BEEA Thin Film Resistor
The TNPW0805 e3 is a high stability thin film flat chip resistor designed for precise and reliable performance in modern electronic applications. With excellent moisture resistivity, stability under different environmental conditions, and sulfur resistance, it suits test, measurement, medical, industrial, and automotive equipment. It features resistance values from 47Ω to 1MΩ, low temperature coefficient, high rated dissipation, and operating temperatures up to 155°C. Its compact size and robust construction ensure durability and consistent performance in demanding environments.
Vishay TNPW08054K02BEEA Thin Film Resistor Specifications:
- Size: 0805 (Metric code RR2012M)
- Resistance Range: 47Ω to 1MΩ
- Resistance Tolerance: ±1%, ±0.5%, ±0.1%
- Temperature Coefficient: ±15 ppm/K
- Rated Dissipation: 0.200 W
- Operating Voltage: 150V maximum
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to 155°C
- Maximum Resistance Change at Rated Dissipation: <0.1% after 8000 hours
- Reliability: Low resistance drift, sulfur-resistant, RoHS compliant
- Dimensions: Length 2.02 mm, Width 0.85 mm, Height 0.45 mm
- Material: Thin film resistor technology
- Application: Precision measurement, industrial, medical, automotive electronics
- Compliance: AEC-Q200 qualified
Buy the Buy Vishay TNPW0805 e3 Part Number TNPW08054K02BEEA Online
Enhance your electronic designs with the Vishay TNPW0805 e3 high stability thin film resistor, ideal for medical, industrial, and automotive applications. Offering resistance from 47Ω to 1MΩ, low temperature coefficient, and operating temperatures up to 155°C, it provides consistent performance and durability. Its compact size makes it suitable for space-constrained layouts, while its sulfur resistance and RoHS compliance guarantee long-term reliability. Trust Vishay for quality components that meet strict industry standards for precision and stability, available for quick online purchase.
Order your Vishay TNPW0805 e3 precision resistor today and ensure your electronic projects benefit from dependable stability and high reliability.
Frequently Asked Questions
Where can I buy Vishay TNPW08054K02BEEA?
You can click on the BUY or RFQ button to purchase TNPW08054K02BEEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TNPW08054K02BEEA?
You can download the TNPW08054K02BEEA datasheet or visit the Vishay website for support.
Who is the manufacturer of TNPW08054K02BEEA?
Vishay
