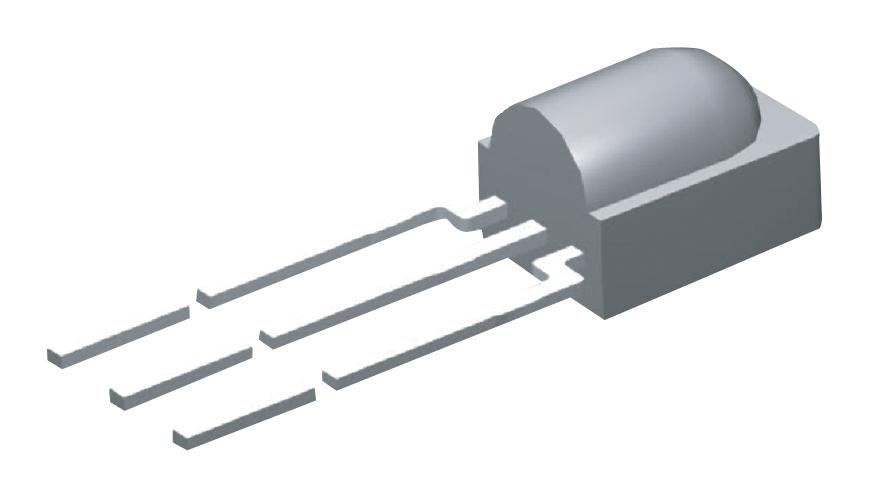

Vishay TSOP18436 IR Receiver Module
The TSOP18436 IR receiver module is designed for remote control systems, offering enhanced dark sensitivity and immunity against optical and Wi-Fi noise. It contains a PIN diode and preamplifier in a compact epoxy package with an integrated IR filter. Suitable for long burst codes at 36 kHz carrier frequency, the module provides reliable demodulation with adjustable sensitivity through AGC levels. Ideal for consumer electronics, automation, and remote controls, it operates within 2.5 to 5.5 V, ensuring low power consumption and robustness against ambient disturbances.
Vishay TSOP18436 IR Receiver Module Specifications:
- Supply voltage: 2.5 V to 5.5 V
- Supply current: 3 mA
- Output voltage: -0.3 to (Vs + 0.3) V
- Maximum output current: 5 mA
- Junction temperature: 100 °C
- Storage temperature: -25 to +85 °C
- Operating temperature: -25 to +85 °C
- Power consumption: 10 mW at Tamb ≤ 85 °C
- Soldering temperature: 260 °C for 10 seconds, 1 mm from case
- Dimensions: 5.0 mm W x 6.95 mm H x 4.8 mm D
- Carrier frequency options: 30 kHz, 33 kHz, 36 kHz, 38 kHz, 40 kHz, 56 kHz
- AGC levels: AGC2, AGC4, AGC6, providing basic to maximized noise suppression
- Applicable remote control protocols: RC-5, RC-6, NEC, Sony, RCA 56 kHz
- Designed to suppress optical disturbances and interference from fluorescent lamps and Wi-Fi signals
Buy the Buy Vishay IR Receiver Module Part Number TSOP18436 Online
Purchase the Vishay TSOP18436 IR receiver module online now and experience superior sensitivity and noise immunity, ideal for remote control systems. Its compact design and low power consumption make it perfect for consumer electronics and automation projects. The module supports multiple protocols like RC-5, RC-6, and NEC, ensuring compatibility with various remote controls. With an integrated IR filter and adjustable sensitivity through AGC levels, it offers reliable performance even in challenging ambient light conditions. Order today for fast delivery and dependable operation.
Get Vishay TSOP18436 today—built for reliable remote control operation with high noise immunity and efficient demodulation.
Frequently Asked Questions
Where can I buy Vishay TSOP18436?
You can click on the BUY or RFQ button to purchase TSOP18436 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TSOP18436?
You can download the TSOP18436 datasheet or visit the Vishay website for support.
Who is the manufacturer of TSOP18436?
Vishay
