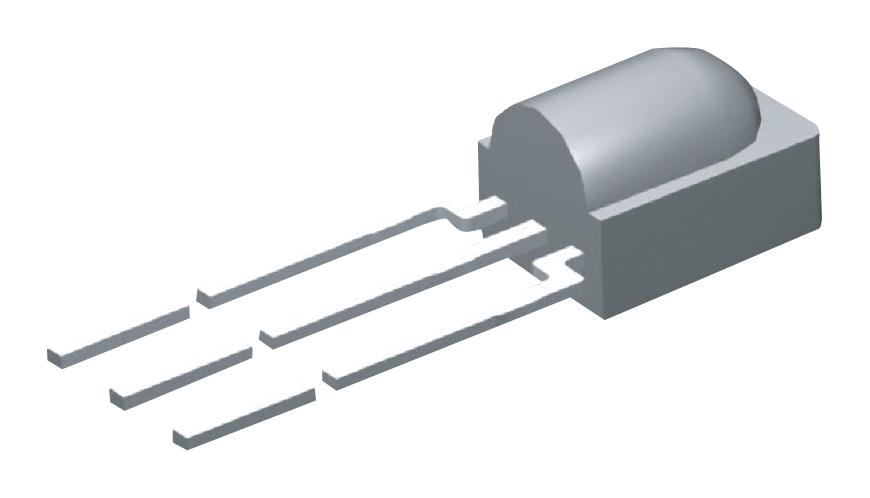

Vishay TSOP18638 IR Receiver Module
The TSOP18638 infrared receiver module is designed for remote control systems, providing enhanced dark and optical noise immunity. It features a PIN diode and preamplifier in a compact package, with an IR filter to ensure reliable signal reception. Suitable for long burst codes, it operates between 2.5 V and 5.5 V, with a maximum output current of 5 mA and a supply current of around 0.70 mA. Its robustness against optical disturbances like Wi-Fi signals makes it ideal for various remote control applications and wireless device interfaces.
Vishay TSOP18638 IR Receiver Module Specifications:
- Supply voltage: 2.5 V to 5.5 V
- Supply current: 0.70 mA typical
- Output voltage: -0.3 V to Vs + 0.3 V
- Maximum output current: 5 mA
- Junction temperature: 100°C
- Storage temperature: -25°C to 85°C
- Operating temperature: -25°C to 85°C
- Power consumption: 10 mW at 85°C
- Soldering temperature: 260°C for 10 seconds maximum
- Package dimensions: 5.0 mm W x 6.95 mm H x 4.8 mm D
- IR detection wavelength: approx. 950 nm
- Detection distance: up to 80 meters
- Suitable for infrared remote control systems and wireless communication applications
Buy the Vishay Series IR Receiver Module: TSOP18638
Buy Vishay TSOP18638 infrared receiver module online today for your remote control, wireless systems, or automation projects. Designed for high sensitivity and noise rejection, this compact IR receiver operates between 2.5 V and 5.5 V, making it ideal for various electronic applications. Its robust design ensures performance in challenging environments, including optical and Wi-Fi noise interference. Easy to integrate, the TSOP18638 provides reliable long-distance operation up to 80 meters, supporting long burst code reception with excellent immunity guaranteed for your remote control system needs.
Get Vishay TSOP18638 today—built for reliable remote control signal reception with high noise immunity and compact design.
Frequently Asked Questions
Where can I buy Vishay TSOP18638?
You can click on the BUY or RFQ button to purchase TSOP18638 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part TSOP18638?
You can download the TSOP18638 datasheet or visit the Vishay website for support.
Who is the manufacturer of TSOP18638?
Vishay
