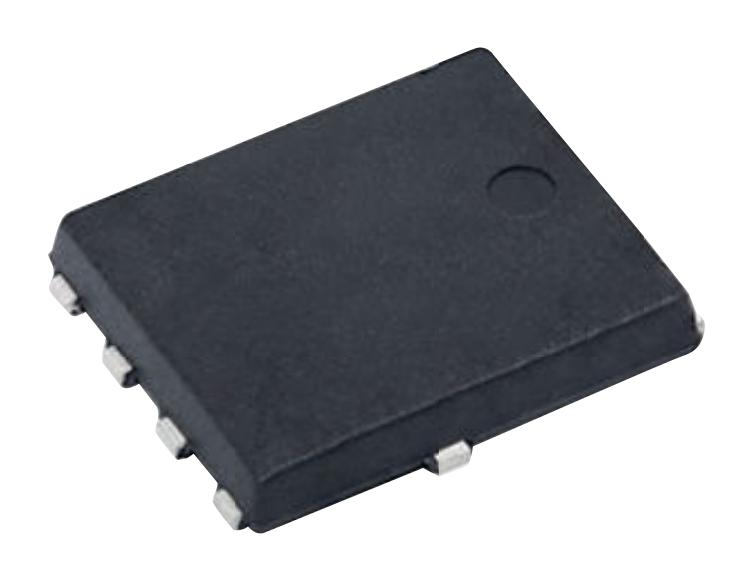

Vishay V10K60CHM3H High-Current Schottky Diode
The V10K60CHM3H is a high-current surface-mount Schottky diode from Vishay, designed for low voltage, high-frequency DC/DC converters, and polarity protection. Featuring a flatPAK 5x6 case with matte tin-plated leads, it offers low forward voltage drop of 0.35 V at 2.5 A, high efficiency, and meets industry standards including UL 94 V-0 flammability and RoHS compliance. The device is AEC-Q101 qualified, capable of handling reverse voltages up to 60 V, and operates within junction temperatures of -40°C to +150°C, ensuring reliable performance in automotive and industrial applications.
Vishay V10K60CHM3H High-Current Schottky Diode Specifications:
- Case: FlatPAK 5 x 6
- Maximum Repetitive Peak Reverse Voltage: 60 V
- Maximum DC Forward Current: 46 A
- Peak Forward Surge Current: 100 A
- Operating Junction Temperature Range: -40°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 2.5°C/W (typ), 3.5°C/W (max)
- Reverse Current at 60 V: 9 mA (at 125°C), 28 mA (at 125°C)
- Forward Voltage: 0.45 V (typ) at 2.5 A, 0.51 V (max) at 5 A
- Junction Capacitance: 800 pF at 4.0 V, 1 MHz
- RoHS compliant, halogen-free, AEC-Q101 qualified
Buy the Buy Vishay High Current Density Surface-Mount Schottky Rectifier Part Number V10K60CHM3H Online
Purchase the Vishay V10K60CHM3H surface-mount Schottky diode online today to ensure high current capability, low forward voltage of 0.35 V at 2.5 A, and excellent thermal performance. Perfect for high-frequency DC/DC converters, polarity protection, and automotive applications, this device boasts a robust 60 V reverse voltage rating and is AEC-Q101 qualified for automotive reliability. Its compact FlatPAK 5x6 package, RoHS compliance, and halogen-free construction make it ideal for demanding industrial and automotive power systems. Order now to experience dependable, efficient power conversion solutions.
Order your Vishay V10K60CHM3H series high-current Schottky diode today and enhance your power management projects with reliable low voltage, high efficiency performance.
Frequently Asked Questions
Where can I buy Vishay V10K60CHM3H?
You can click on the BUY or RFQ button to purchase V10K60CHM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part V10K60CHM3H?
You can download the V10K60CHM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of V10K60CHM3H?
Vishay
