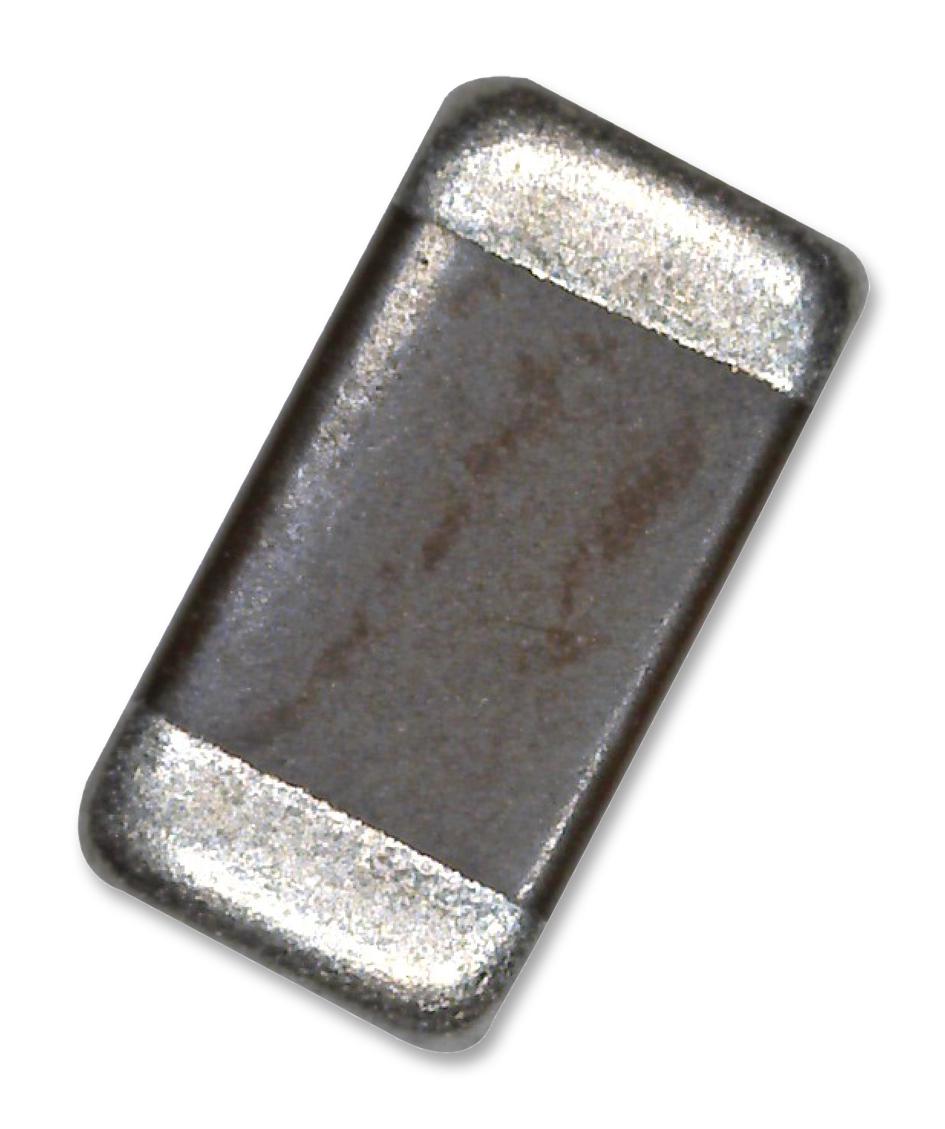

Vishay VJ0603A220JXACW1BC Multilayer Ceramic Capacitor
Vishay Basic Commodity Series surface-mount multilayer ceramic chip capacitors designed for reliable performance in consumer electronics, telecom, and data processing. Available in sizes from 0402 to 1210, these capacitors feature ultra-stable dielectric types including COG (NP0), X5R, X7R, and YSV, with a wide capacitance and voltage range suitable for various high-frequency and stability applications. They comply with RoHS standards, incorporate halogen-free dry sheet technology, and utilize noble and base metal electrode systems, ensuring durability, high capacitance, and excellent insulation resistance in compact form factors.
Vishay VJ0603A220JXACW1BC Multilayer Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Available sizes: 0402 to 1210
- Capacitance range: 0.5 pF to 220 uF depending on dielectric type
- Voltage range: 10 V to 100 V for X5R, 6.3 V to 50 V for X7R
- Operating temperature: -55°C to +125°C (COG, X7R), -55°C to +85°C (X5R), -25°C to +85°C (Y5V)
- Temperature coefficient of capacitance: varying by dielectric type (+15% for X5R/X7R, +30% for Y5V)
- Insulation resistance > 210 GΩ at rated voltage, test conditions per datasheet
- Dissipation factor and aging rate: varies with dielectric, with low dielectric loss and aging of 0% per decade for COG
- Package options: surface mount sizes including 0402, 0603, 0805, 1206, 1210
- RoHS compliant, halogen-free, noble metal and base metal electrode systems
- Designed for high frequency stability, high capacitance, and reliability in compact form factors
Buy the Vishay Series W1BC Multilayer Ceramic Capacitors: VJ0603A220JXACW1BC
Enhance your electronic assemblies with Vishay Series W1BC multilayer ceramic chip capacitors, offering high stability, wide capacitance, and voltage ranges. Perfect for consumer electronics, telecom, and data processing applications, these surface-mount components are RoHS compliant, halogen-free, and utilize advanced dielectric materials. Available in various sizes such as 0402 to 1210, they provide excellent insulation resistance, low dissipation factor, and stability under high-frequency conditions. Purchase online today to get dependable, compact capacitors tailored for demanding high-performance applications.
Order your Vishay Series W1BC ceramic chip capacitor today and ensure reliable, high-performance components for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay VJ0603A220JXACW1BC?
You can click on the BUY or RFQ button to purchase VJ0603A220JXACW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0603A220JXACW1BC?
You can download the VJ0603A220JXACW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0603A220JXACW1BC?
Vishay
