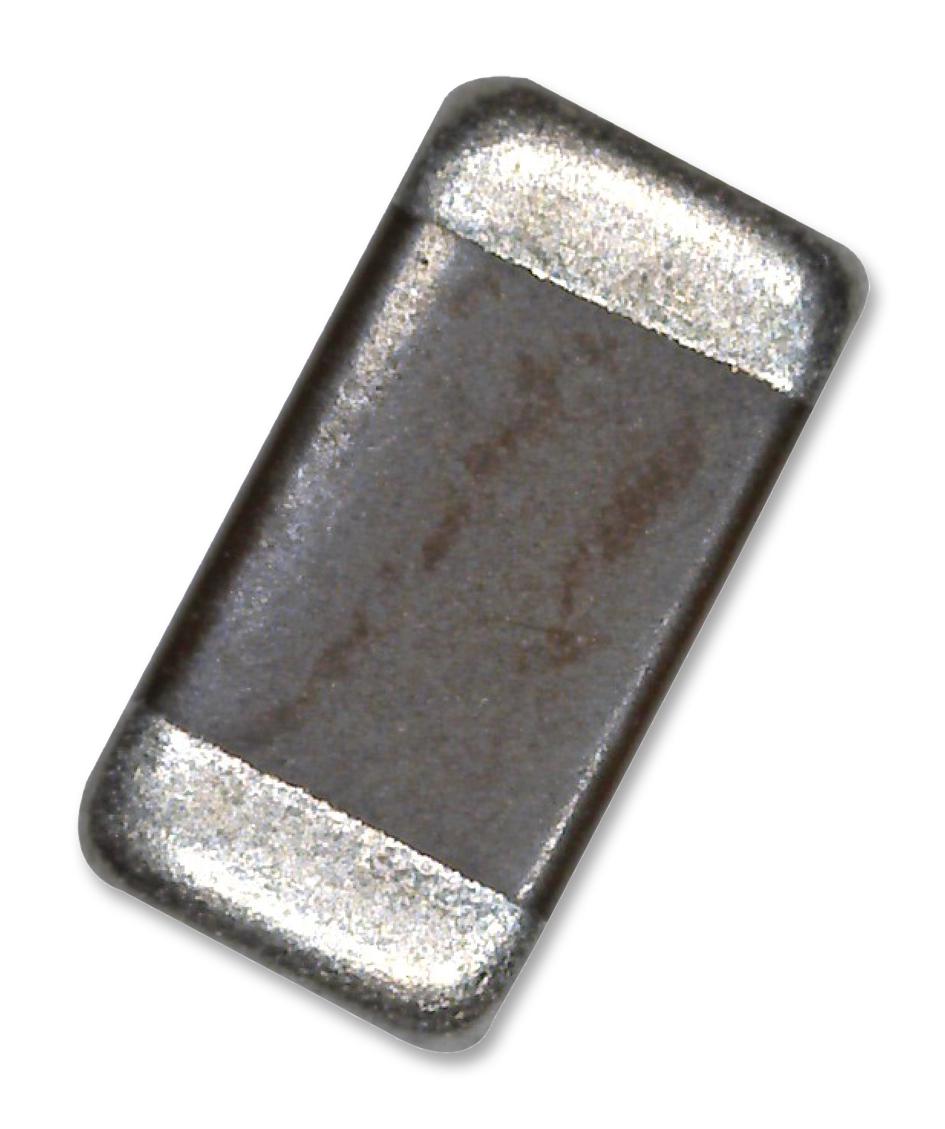

Vishay VJ0603Y224KXQCW1BC Ceramic Capacitor
Vishay's Basic Commodity Series surface mount multilayer ceramic chip capacitors are compact, reliable, and suitable for a wide range of electronic applications including consumer electronics, telecommunications, and data processing. They feature high capacitance in small sizes, excellent stability for high-frequency use, and RoHS compliance. Available in various dielectric types such as X7R, X5R, and Y5V, these capacitors operate over a broad temperature range and with voltage ratings up to 100 V. Their robust construction ensures durability and consistent performance in demanding environments.
Vishay VJ0603Y224KXQCW1BC Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Inner electrode: Ni
- Inner layer: Cu
- Termination: Sn (matte)
- Size options: 0402, 0603, 0805, 1206, 1210 mm
- Operating Temperature: -55 °C to +125 °C (COG, X7R); -25 °C to +85 °C (Y5V)
- Capacitance Range: 0.5 pF to 220 uF (varies by dielectric type)
- Voltage Range: 10 Vp to 100 Vp (COG, NPQ); 6.3 V to 50 V (X5R); 10 V to 100 V (X7R); 6.3 V to 100 V (Y5V)
- Insulation Resistance: ≥ 210 GΩ at Up
- Dielectric Strength: < 100 Vp tested at 1 to 5 seconds
- Aging Rate: 0% per decade (COG), up to 12.5% (Y5V)
- RoHS compliant, halogen-free, dry sheet technology
- High capacitance density, stable dielectric properties
- Available in tape and reel packaging for automated assembly
Buy the Vishay Series Basic Commodity Ceramic Capacitors: VJ0603Y224KXQCW1BC
Purchase Vishay ceramic capacitors online for your high-frequency, consumer, telecom, or data processing applications. These reliable, RoHS-compliant components provide excellent stability, durability, and a wide operating temperature range. Perfect for automated manufacturing, their compact size and high capacitance make them ideal for modern electronic devices requiring space-saving solutions. Order today to ensure consistent quality and performance in your assembly line, with fast shipping and expert support available.
Get Vishay VJ0603Y224KXQCW1BC today—built for high stability, small size, and reliable performance in your electronic designs.
Frequently Asked Questions
Where can I buy Vishay VJ0603Y224KXQCW1BC?
You can click on the BUY or RFQ button to purchase VJ0603Y224KXQCW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0603Y224KXQCW1BC?
You can download the VJ0603Y224KXQCW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0603Y224KXQCW1BC?
Vishay
