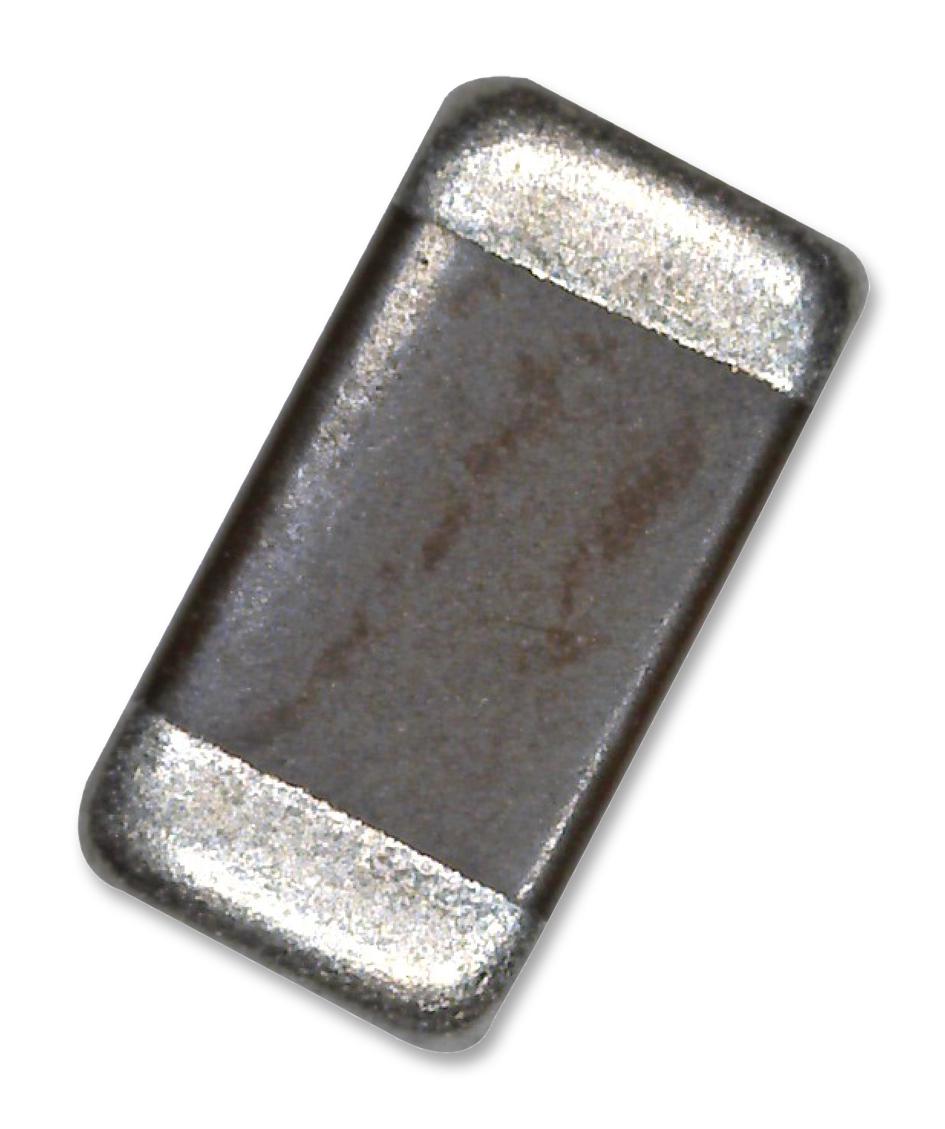

Vishay VJ0805A103GXJTW1BC Ceramic Capacitor
Surface mount multilayer ceramic chip capacitors designed for commodity applications, available in various dielectrics such as COG, X5R, X7R, and YSV. These capacitors operate across temperature ranges from -55 °C to +125 °C for most dielectrics, with capacitance from 0.5 pF up to 220 µF and voltage ratings up to 100 V. They feature high stability, corrosive gas resistance, and RoHS compliance, suitable for consumer electronics, telecommunications, data processing, and mobile applications, with options from 0402 to 1210 sizes.
Vishay VJ0805A103GXJTW1BC Ceramic Capacitor Specifications:
- Operating Temperature: -55 °C to +125 °C (COG, X7R), -55 °C to +85 °C (X5R), -25 °C to +85 °C (Y5V)
- Capacitance Range: 0.5 pF to 220 µF
- Voltage Range: Up to 100 V
- Dielectric Types: COG (NP0), X5R, X7R, Y5V
- Dissipation Factor (DF): varies by dielectric, up to 1206 size approximately 0.22 pF to 47 µF
- Size Options: 0402, 0603, 0805, 1206, 1210
- Test Conditions: Capacitance measured at 1.0 MHz, temperature stability based on dielectric type
- Material: BaTiO3 based ceramic, Ni inner electrode, Sn outer layer
- Storage Conditions: 5 °C to 40 °C, 20-70% humidity, use within one year to ensure solderability
- Construction: Ceramic core with Ni and Cu electrodes, Sn matte finish terminals
Buy the Vishay Series Basic Commodity Ceramic Capacitors: VJ0805A103GXJTW1BC
Purchase Vishay VJ0805A103GXJTW1BC ceramic chip capacitors online today—ideal for high-frequency, high-stability applications in consumer electronics, telecom, and data processing. These reliable multilayer ceramic components feature a wide capacitance range from 0.5 pF to 220 µF, operating up to 100 V, with various sizes like 0805 and 1210 for versatile mounting. Designed for stability, durability, and RoHS compliance, they ensure excellent electrical performance under demanding conditions, making them the perfect choice for technicians and engineers seeking quality and ease of procurement.
Get Vishay VJ0805A103GXJTW1BC today—built for precision and long-lasting durability in high-frequency electronic circuits.
Frequently Asked Questions
Where can I buy Vishay VJ0805A103GXJTW1BC?
You can click on the BUY or RFQ button to purchase VJ0805A103GXJTW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805A103GXJTW1BC?
You can download the VJ0805A103GXJTW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805A103GXJTW1BC?
Vishay
