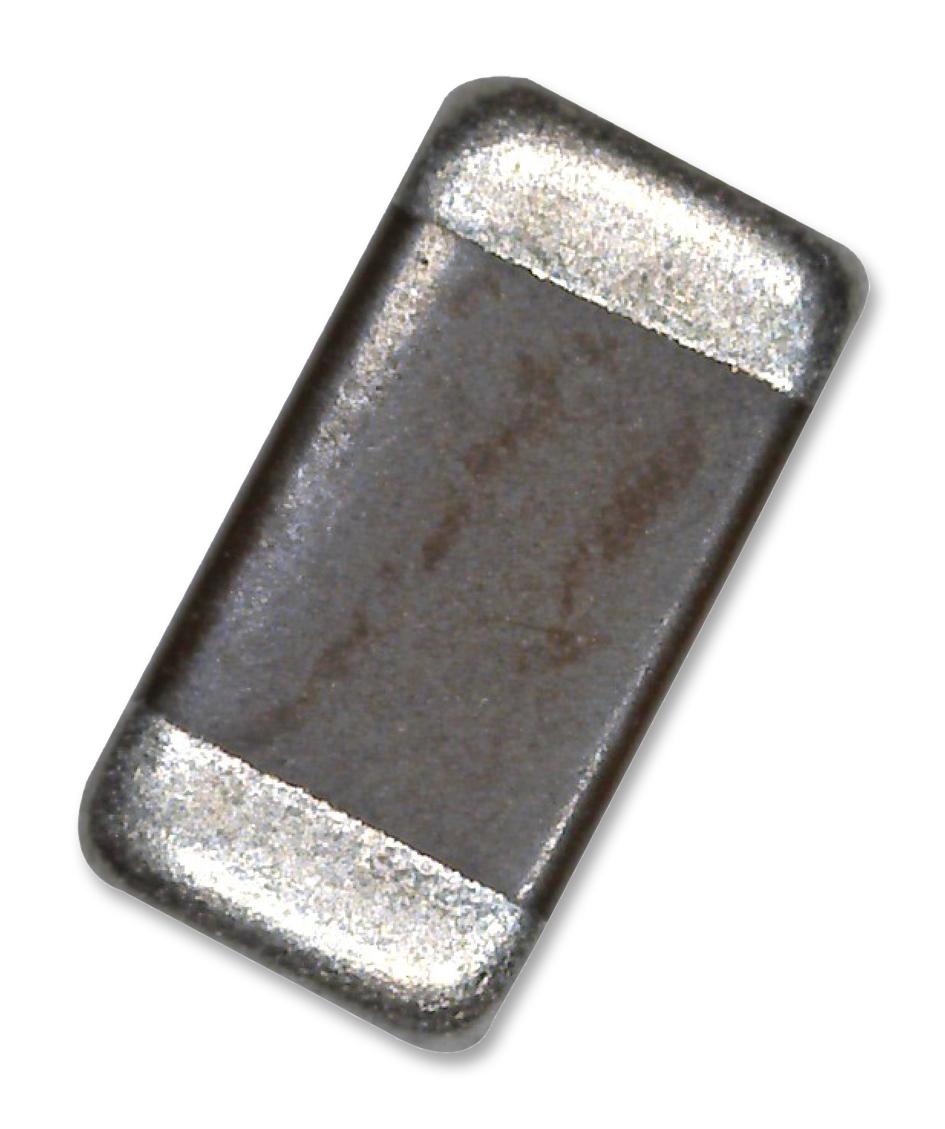

Vishay VJ0805A680JXACW1BC Ceramic Capacitor
These surface-mount multilayer ceramic chip capacitors offer high stability and broad temperature ranges, ideal for consumer electronics, telecommunications, and data processing applications. They feature various dielectric types such as COG, X5R, X7R, and YSV, with capacitance ranges from 0.5 pF to 220 μF and voltage ratings up to 100 V. The capacitors are RoHS compliant, halogen-free, and utilize noble and base metal electrode systems. Designed for high frequency stability and reliability, they are suitable for compact, high-performance electronic circuits.
Vishay VJ0805A680JXACW1BC Ceramic Capacitor Specifications:
- Material: BaTiO3 based ceramic
- Dielectric types: COG (NP0), X5R, X7R, YSV
- Capacitance Range: 0.5 pF to 220 μF
- Voltage Range: 10 V to 100 V
- Operating Temperature: -55°C to +125°C (COG, X7R), -55°C to +85°C (X5R), -25°C to +85°C (YSV)
- Insulation Resistance: 210 GΩ or R x C > 500 Ω x F
- Dissipation Factor: varies with dielectric type and size, e.g., Q=400+20C for Cap. <30 pF
- Maximum Voltage: Up to 100 V, tested voltage 1.5 to 2.5 times rated voltage depending on dielectric
- Aging Rate: 0% per decade for COG (NP0), up to 12.5% per decade for Y5V
- Certifications: RoHS compliant, halogen-free, UL listed
Buy the Buy Vishay Surface Mount Multilayer Ceramic Capacitors Part Number VJ0805A680JXACW1BC Online
Purchase the Vishay SeriesVJ0805A680JXACW1BC ceramic surface-mount capacitors online to ensure your electronic designs benefit from high stability, broad temperature performance, and reliable operation. These capacitors are suitable for compact consumer electronics, telecommunications, and data processing systems. Designed with advanced dielectric materials, they offer capacitance values up to 220 μF and voltages up to 100 V. Browse and order now to secure dependable, RoHS-compliant components for your high-frequency and high-reliability applications!
Order your Vishay SeriesVJ0805A680JXACW1BC high-reliability ceramic capacitors today and enhance your electronic projects with stable, compact design.
Frequently Asked Questions
Where can I buy Vishay VJ0805A680JXACW1BC?
You can click on the BUY or RFQ button to purchase VJ0805A680JXACW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ0805A680JXACW1BC?
You can download the VJ0805A680JXACW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ0805A680JXACW1BC?
Vishay
