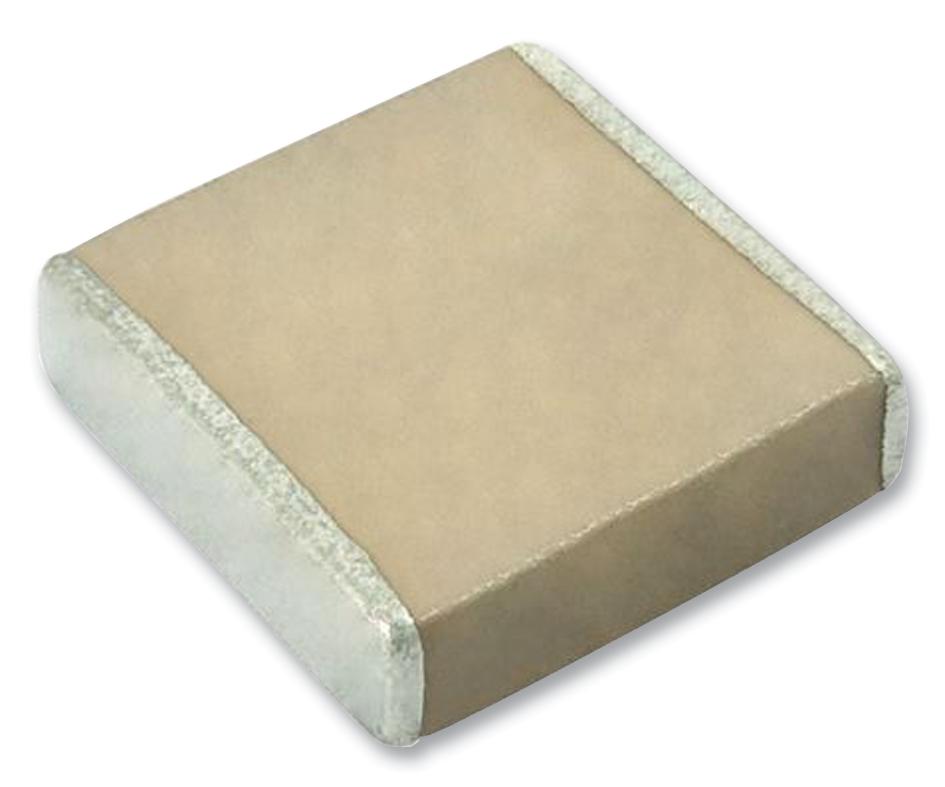

Vishay VJ1111D1R8BXRAJ RF Power Capacitor
Vishay Vitramon QUAD HIFREQ Series surface mount multilayer ceramic capacitors are designed for RF power applications, offering high stability, low dissipation factor, and high voltage ratings. These capacitors are suitable for MRI coils, RF instruments, amplifiers, filters, oscillators, and impedance matching networks. Constructed with ultra-stable dielectric materials and noble metal electrodes, they feature RoHS compliance and various case sizes (0505, 1111, 2525). They provide excellent insulation resistance, dielectric strength, and aging rate, ensuring reliable performance in demanding RF and microwave environments.
Vishay VJ1111D1R8BXRAJ RF Power Capacitor Specifications:
- Case sizes: 0505, 1111, 2525
- Capacitance range: 1.0 pF to 1000 pF (1111), 1.0 pF to 2700 pF (2525)
- Voltage ratings: 200 V to 3600 V depending on series
- Operating temperature: -55°C to +125°C
- Dielectric Material: Ultra-stable, high Q dielectric
- Dissipation Factor: max 0.05%
- Insulation Resistance: ≥ 100,000 MΩ at +25°C, rated voltage
- Dielectric Strength: ≥ 250% rated voltage for < 250 V, ≥ 150% for 300-1000 V, ≥ 120% for ≥ 1500 V
- Aging Rate: maximum 0% per decade
- RoHS compliant, lead-free options available
- Reliable noble metal electrode system
- Package: surface mount with plastic or paper tape for automated assembly
- Suitable for high-frequency RF, microwave, and impedance matching applications
Buy the VISHAY VJ1111D1R8BXRAJ – Reliable RF Power Capacitors for Industrial Applications
Get the Vishay VJ1111D1R8BXRAJ high voltage RF ceramic capacitor online today. Designed for RF and microwave circuits, these surface mount capacitors deliver high stability, low loss, and reliable performance. Perfect for applications like MRI coils, RF amplifiers, filters, and oscillators, they ensure consistent operation even in challenging environments. Order now to enhance your RF system’s performance with industry-leading quality and fast delivery, ensuring your project stays on schedule and meets all technical specifications with ease.
Order your Vishay Series VJ1111D1R8BXRAJ surface-mount RF ceramic capacitor today and equip your projects with dependable quality for demanding RF and microwave applications.
Frequently Asked Questions
Where can I buy Vishay VJ1111D1R8BXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D1R8BXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D1R8BXRAJ?
You can download the VJ1111D1R8BXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D1R8BXRAJ?
Vishay
