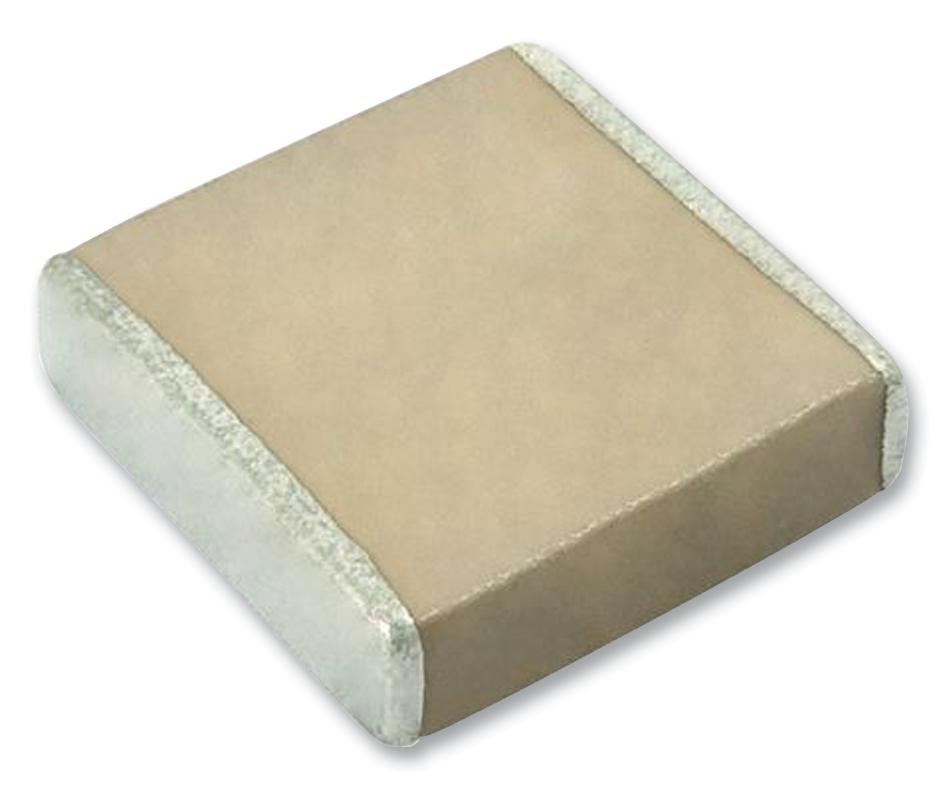

Vishay VJ1111D2R4BXRAJ High-Frequency Ceramic Capacitor
Vishay Vitramon Quad HIFREQ Series multilayer ceramic capacitors are high-frequency, surface-mount components designed for RF power applications, including MRI coils, RF instruments, and microwave RF power amplifiers. They feature ultra-stable, high Q dielectric material, RoHS compliance, nickel barrier with tin or tin-lead terminations, and are available in sizes 0505, 1111, and 2525. These capacitors offer excellent temperature stability, insulation resistance, dielectric strength, aging rate of 0% per decade, and are suitable for demanding high-frequency environments.
Vishay VJ1111D2R4BXRAJ High-Frequency Ceramic Capacitor Specifications:
- Case sizes: 0505, 1111, 2525
- Operating Temperature: -55°C to +125°C
- Capacitance Range: 1.0 pF to 2700 pF
- Voltage Ratings: Up to 3600 Vp
- Dielectric Material: Ultra-stable high Q ceramic
- Temperature Coefficient: 0 ppm/°C (COG), +30 ppm/°C
- Dissipation Factor: 0.05% at 1.0 Vas and 1 MHz (for values < 1000 pF)
- Insulation Resistance: ≥ 100,000 MΩ at 25°C, rated voltage
- Dielectric Strength Test: Min. 250% rated voltage for <250 V rated
- Aging Rate: 0% per decade
- Termination Options: Ni barrier with tin or tin-lead plating
- RoHS and Halogen-free compliant products available
- Case dimensions: 0505 (1.45 x 1.45 mm), 1111 (3.18 x 3.18 mm), 2525 (6.35 x 6.35 mm)
- Reliable noble metal electrode system for high frequency stability
- Designed for filter networks, timing circuits, impedance matching, and RF power applications
Buy the Buy Vishay Quad HIFREQ Capacitors Part Number VJ1111D2R4BXRAJ Online
Enhance your RF circuits with Vishay Quad HIFREQ Series high-frequency ceramic capacitors, featuring ultra-stable dielectric, high voltage ratings, and RoHS compliance. Perfect for microwave power amplifiers, filter networks, and impedance matching, these surface-mount components deliver reliable performance in demanding environments. With sizes 0505, 1111, and 2525, they offer excellent temperature stability, aging rate of 0%, and versatile termination options including nickel barrier with tin or tin-lead plating for easy soldering. Shop online now for fast delivery and superior quality.
Order your Vishay SeriesVJ1111D2R4BXRAJ high-frequency ceramic capacitor today and ensure your RF and microwave projects operate with top-tier stability and reliability.
Frequently Asked Questions
Where can I buy Vishay VJ1111D2R4BXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D2R4BXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D2R4BXRAJ?
You can download the VJ1111D2R4BXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D2R4BXRAJ?
Vishay
