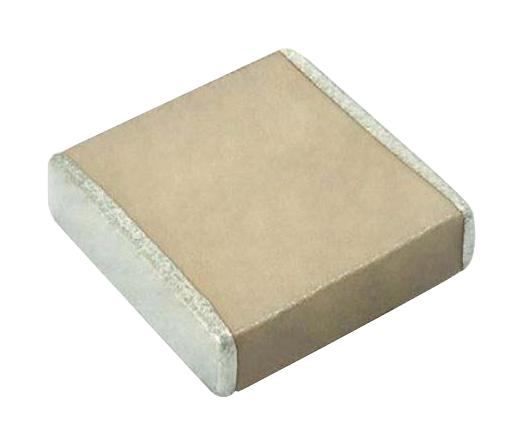

Vishay VJ1111D8R2CXRAJ High Frequency Ceramic Capacitor
High-frequency multilayer ceramic capacitor suitable for RF circuits, microwave applications, and impedance matching. Features stable electrical characteristics, a broad capacitance range, and RoHS compliance. Ideal for filter networks, oscillators, and MRI equipment, with various case sizes and voltage ratings. Constructed with noble metal electrodes for high Q and low ESR, ensuring excellent performance at high frequencies and temperature stability from -55°C to +125°C. Offers reliable insulation resistance and dielectric strength, suitable for demanding RF power and timing applications.
Vishay VJ1111D8R2CXRAJ High Frequency Ceramic Capacitor Specifications:
- Case sizes: 0505, 1111, 2525, 3838, 3838, 2525, 1111, 0505
- Capacitance ranges: 0.1 pF to 12 nF depending on size
- Operating temperature: -55°C to +125°C
- Voltage ratings: from 50 Vg to 7200 V (case size-dependent)
- Temperature Coefficient of Capacitance: CO G (D): 0 ppm/°C + 30 ppm/°C
- Dissipation Factor: ≤ 0.05 % at 1.0 V, 1 MHz, and ≤ 0.05 % at 1.0 V, 1 kHz for other values
- Insulation Resistance: ≥ 100 MΩ at +25°C; ≥ 10 kΩ at +125°C
- Dielectric strength: Minimum 250% of rated voltage depending on voltage class
- Construction: Surface-mount multilayer ceramic with noble metal electrodes
- Features: RoHS compliant, lead-free, halogen-free, non-magnetic copper terminations, various packaging options
Buy the Buy Vishay VJ1111D8R2CXRAJ High Frequency Ceramic Capacitor Part Number VJ1111D8R2CXRAJ Online
Experience superior RF performance with Vishay VJ1111D8R2CXRAJ high frequency ceramic capacitor. Built for stability, low ESR, and high Q at microwave and RF frequencies, it is ideal for filter networks, oscillators, impedance matching, and MRI equipment. Its wide voltage range up to 7200 V and temperature stability from -55°C to +125°C ensure reliable operation in demanding applications. RoHS compliant and halogen-free, it provides eco-friendly, high-quality components suitable for various industrial and medical RF systems, with multiple packaging options for ease of use and scalability.
Get Vishay VJ1111D8R2CXRAJ high frequency ceramic capacitor today—designed for RF circuits, microwave applications, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay VJ1111D8R2CXRAJ?
You can click on the BUY or RFQ button to purchase VJ1111D8R2CXRAJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111D8R2CXRAJ?
You can download the VJ1111D8R2CXRAJ datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111D8R2CXRAJ?
Vishay
