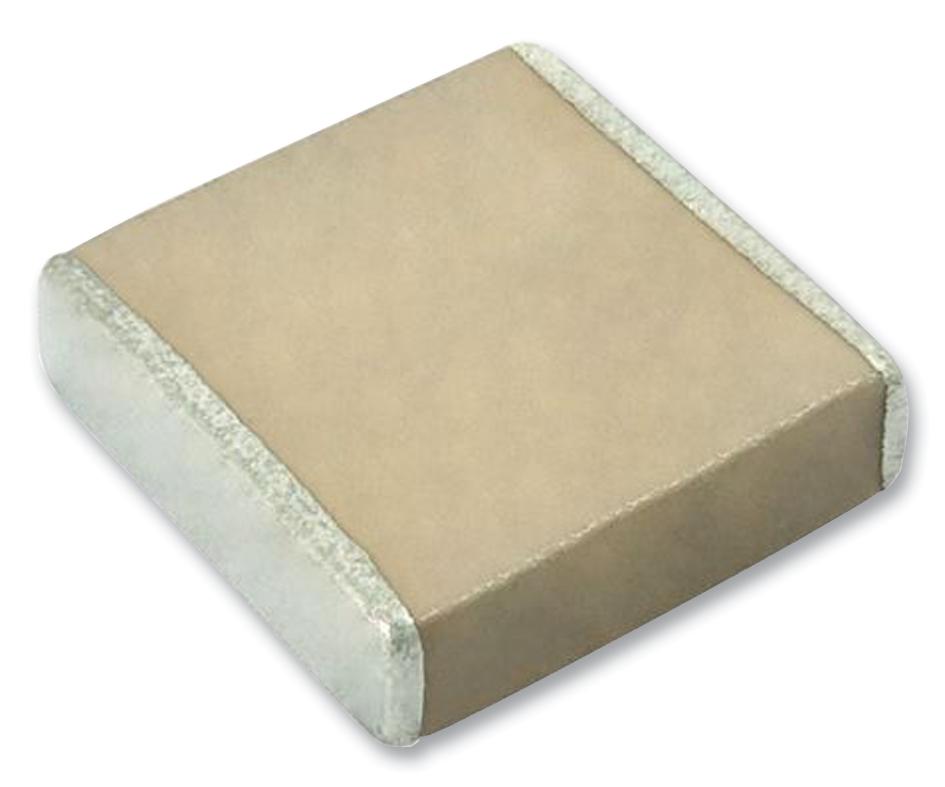

Vishay VJ1111QUARF3KIT High Frequency Ceramic Capacitor
The VJ1111QUARF3KIT is a high-frequency ceramic capacitor series designed for RF power applications, offering excellent stability, high Q, and reliability. Suitable for MRI coils, RF instruments, microwave power amplifiers, filters, and oscillators, these surface-mount multilayer ceramic capacitors operate from -55°C to +125°C, with extended versions reaching up to 200°C. Available in sizes 0505, 1111, 2525, and 3838, they feature various voltage ratings up to 7200 V and capacitance ranges from 0.1 pF to 5100 pF, with RoHS compliance options. Their robust dielectric material ensures high performance in demanding RF environments.
Vishay VJ1111QUARF3KIT High Frequency Ceramic Capacitor Specifications:
- Sizes: 0505, 1111, 2525, 3838
- Capacitance Range: 0.1 pF to 5100 pF
- Voltage Rating: up to 7200 V
- Operating Temperature: -55°C to +125°C, extended to 200°C for specific types
- Temperature Coefficient of Capacitance: 0 ppm/°C ±30 ppm/°C
- Dissipation Factor: 0.05% max. at 1.0 V rms and 1 MHz
- Insulation Resistance: ≥100,000 MΩ at +25°C, rated voltage
- Dielectric Strength: ≥250% of rated voltage for voltages below 250 V, proportionally higher for larger voltages
- Material: Ultra-stable, high Q dielectric, RoHS compliant options available
- Frequency Range: Up to several hundred MHz with low ESR, Q factor varies with frequency
- Case Sizes: 0.055, 0.117, 0.250, 0.360 inches
- Termination: RoHS-compliant nickel barrier or tin-plated, RoHS options
- Environmental: RoHS compliant, suitable for demanding RF environments
Buy the VISHAY VJ1111QUARF3KIT – Reliable RF Ceramic Capacitor for Industrial Applications
Acquire the VISHAY VJ1111QUARF3KIT now to enhance your RF and microwave applications. Offering exceptional stability, high Q, and voltages up to 7200 V, these surface-mount multilayer ceramic capacitors deliver reliable performance in demanding environments. Suitable for MRI coils, RF instruments, and filter networks, they come in multiple sizes with RoHS compliance options. Order easily online and ensure your projects benefit from Vishay's proven quality, durability, and technical excellence in RF component solutions.
Get VISHAY VJ1111QUARF3KIT today—built for high-frequency precision and long-lasting durability in RF and microwave systems.
Frequently Asked Questions
Where can I buy Vishay VJ1111QUARF3KIT?
You can click on the BUY or RFQ button to purchase VJ1111QUARF3KIT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1111QUARF3KIT?
You can download the VJ1111QUARF3KIT datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1111QUARF3KIT?
Vishay
