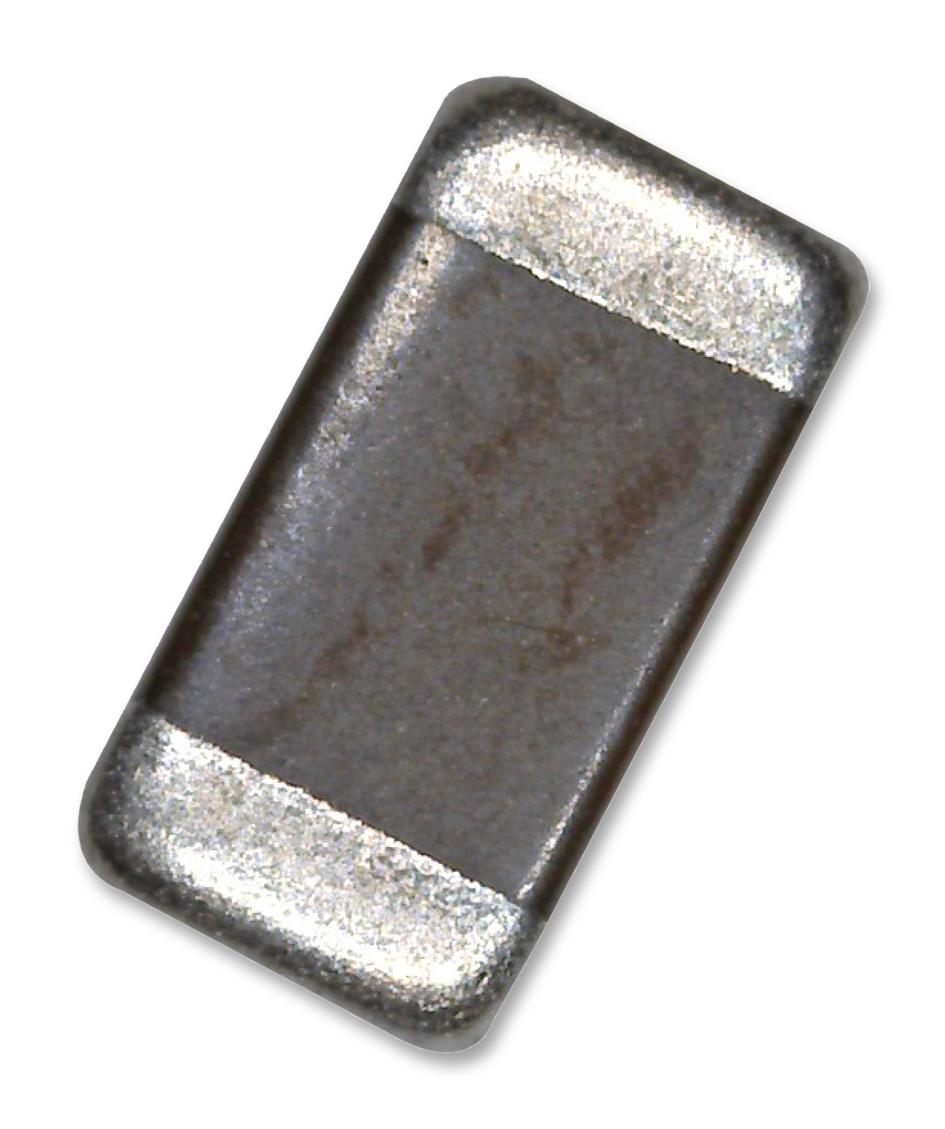

Vishay VJ1206A180JXXPW1BC Multilayer Ceramic Capacitor
Surface mount multilayer ceramic chip capacitors designed for commodity applications, offering high stability and capacitance in compact sizes like 0603, 1206, and 1210. Suitable for consumer electronics, telecommunications, and mobile devices, these capacitors feature dielectric types such as COG (NP0), X5R, X7R, and YSV, with wide operating temperature ranges from -55°C to +125°C. They provide reliable performance with various voltage ratings from 6.3 V to 100 V, low dissipation factors, and impressive insulation resistance. Ideal for high-frequency and precision circuits, ensuring durability and efficiency in modern electronic systems.
Vishay VJ1206A180JXXPW1BC Multilayer Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Case sizes: 0603, 1206, 1210
- Operating temperature: -55°C to +125°C (COG, X7R); -25°C to +85°C (Y5V); -55°C to +85°C (X5R)
- Capacitance range: 0.5 pF to 220 uF depending on dielectric type
- Voltage range: 6.3 V to 100 V
- Dielectric types: COG (NP0), X5R, X7R, Y5V
- Insulation resistance: 210 GΩ or R×C > 500 Ω×F
- Dissipation factor: varies with dielectric, e.g., Q=400+20C for Cap <30pF
- Test conditions: Capacitance measured at 1.0 V, 1 MHz or 1.0 kHz depending on size and dielectric
- Aging rate: 0% per decade (COG), up to 12.5% per decade (Y5V)
- Maximum voltage: <100 Vpc depending on size and dielectric type
- Packaging: Paper and plastic tape, 0402 to 1210 sizes, reel dimensions as per standards
- Construction: BaTiO3 ceramic, with Ni, Cu, and Sn electrodes, and outer layer of matte Sn
- Storage conditions: Store at 5-40°C, 20-70% humidity, use within 1 year, avoid corrosive atmospheres and direct sunlight
Buy the Buy Vishay Surface Mount Multilayer Ceramic Capacitors Part Number VJ1206A180JXXPW1BC Online
Purchase Vishay VJ1206A180JXXPW1BC ceramic capacitors online to ensure your electronic devices operate efficiently and reliably. These high-quality MLCCs offer wide temperature ranges, various capacitance values, and voltage ratings suitable for consumer electronics, telecommunications, and mobile applications. With proven stability, low dissipation factors, and durable construction, buying online allows quick access to top-tier components for your high-frequency, precision, or bulk manufacturing needs. Experience convenience, trusted quality, and fast delivery when you select Vishay MLCCs for your electronics assembly or repair projects.
Buy Vishay VJ1206A180JXXPW1BC now and experience unmatched reliability and high stability for your electronic projects.
Frequently Asked Questions
Where can I buy Vishay VJ1206A180JXXPW1BC?
You can click on the BUY or RFQ button to purchase VJ1206A180JXXPW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1206A180JXXPW1BC?
You can download the VJ1206A180JXXPW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1206A180JXXPW1BC?
Vishay
