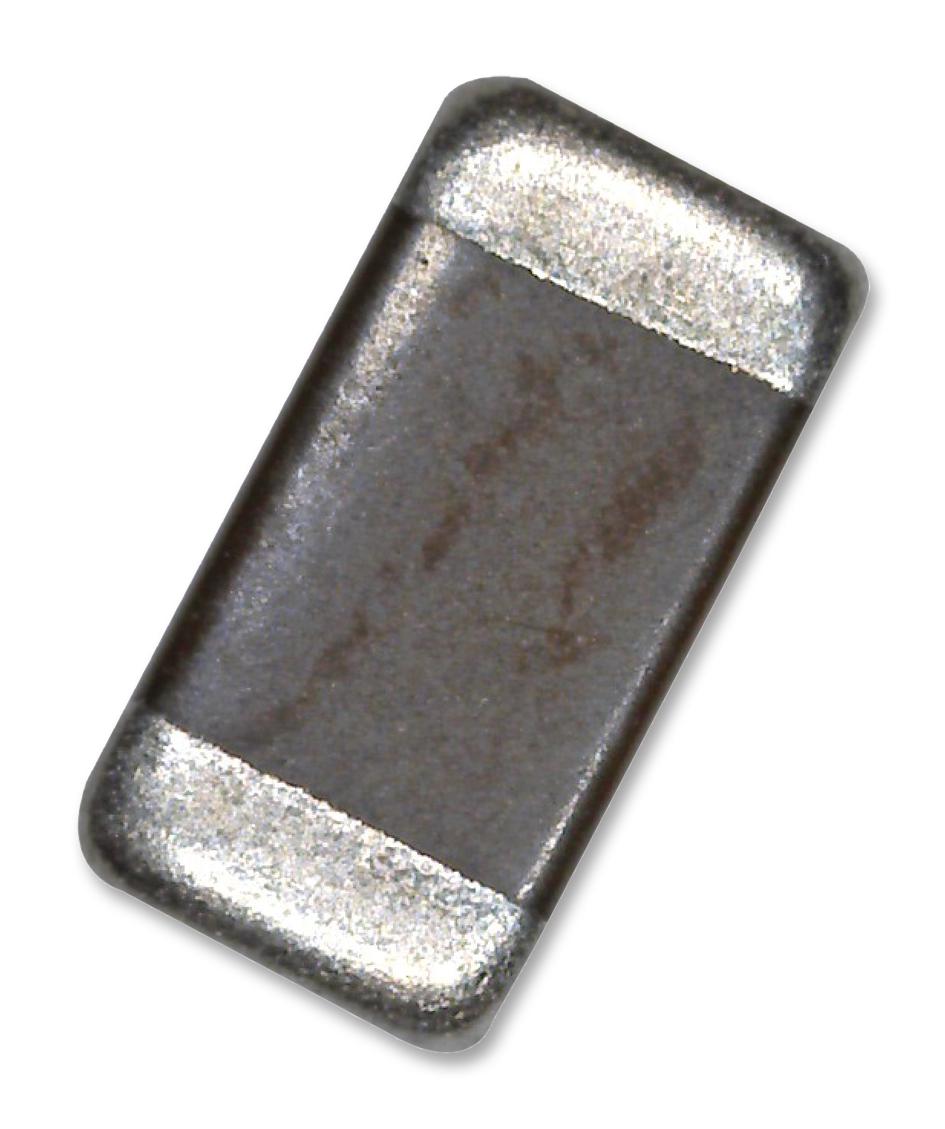

Vishay VJ1206Y224JXATW1BC Ceramic Capacitor
Vishay's surface mount multilayer ceramic chip capacitors from the Basic Commodity Series are highly reliable components ideal for consumer electronics, telecommunications, data processing, and mobile applications. They offer stable capacitance characteristics over a wide temperature range, are available in a variety of dielectric types such as COG, X5R, X7R, and Y5V, and operate at voltages up to 100 V. These capacitors feature RoHS compliance, halogen-free construction with noble metal electrodes, and come in various sizes including 0402, 0603, 0805, 1206, and 1210, suitable for high-frequency applications.
Vishay VJ1206Y224JXATW1BC Ceramic Capacitor Specifications:
- Ceramic material: BaTiO3 based
- Operating Temperature: -55 °C to +125 °C (COG, X7R), -55 °C to +85 °C (X5R), -25 °C to +85 °C (Y5V)
- Capacitance Range: 0.5 pF to 220 uF depending on dielectric type
- Voltage Range: 10 Vpc to 100 Vpg, specific to dielectric
- Dielectric Coefficient of Capacitance: +15% (X5R), +15% (X7R), +30%/-80% (Y5V), 0 ppm/°C (COG/NPO)
- Insulation Resistance: 210 GΩ at Up
- Size options: 0402, 0603, 0805, 1206, 1210
- Termination: Sn (matt), halogen-free, noble metal electrode system (NME)
- Dissipation Factor (DF): Varies with capacitance and voltage, typically below 0.1 for small sizes
- Aging Rate: 0% per decade (COG), up to 6.3 Vpk / 10 Vpk for X5R
- Packaging: Paper and plastic tapes, reel dimensions standardized for automated placement
- Storage Conditions: 5°C to 40°C, relative humidity 20%-70%, use within one year
Buy the Vishay Series Basic Commodity Capacitors: VJ1206Y224JXATW1BC
Order Vishay ceramic capacitors from the Basic Commodity Series with confidence. Designed for superior stability, high frequency performance, and RoHS compliance, these surface-mount components are perfect for consumer, telecommunications, and data processing devices. Available in multiple sizes including 0402, 0603, 0805, 1206, and 1210, with capacitances up to 220 microfarads and voltages up to 100 V. Ensure quality and efficiency in your production process by buying online today—delivering reliable, long-lasting components for your electronics needs.
Get Vishay VJ1206Y224JXATW1BC today—built for stability, high capacitance, and reliable performance in consumer electronics and telecom applications.
Frequently Asked Questions
Where can I buy Vishay VJ1206Y224JXATW1BC?
You can click on the BUY or RFQ button to purchase VJ1206Y224JXATW1BC from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1206Y224JXATW1BC?
You can download the VJ1206Y224JXATW1BC datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1206Y224JXATW1BC?
Vishay
