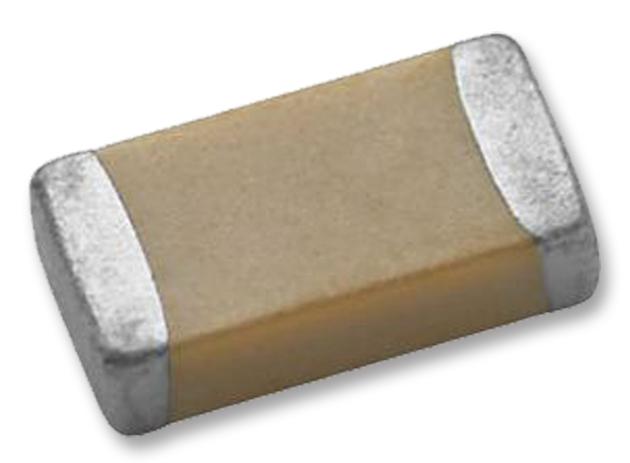

Vishay VJ1210Y472KXGAT4X Ceramic Capacitors
Vishay Vitramon VJ OMD series offers surface-mount multilayer ceramic chip capacitors designed for board flex sensitive applications. Featuring open mode design to prevent cracks from reaching electrodes, they reduce the risk of shorts and leakage. Available with polymer termination for enhanced mechanical and thermal stress absorption, these capacitors are suitable for demanding filtering and snubber applications, high-frequency filtering in switching power supplies, and overcoming board flex challenges in electronic assemblies. They provide reliable performance under thermal cycling and high voltage conditions, ensuring durability in various environments.
Vishay VJ1210Y472KXGAT4X Ceramic Capacitors Specifications:
- Capacitance Range: 10 pF to 47 nF
- Voltage Range: 50 V to 3000 V
- Operating Temperature: -55°C to +125°C
- Temperature Coefficient: 0 ppm/°C + 30 ppm/°C for C0G (NPO); +15% from -55°C to +125°C for X7R
- Insulating Resistance: 100,000 MΩ at +25°C, 10,000 MΩ at +125°C
- Dielectric Strength: 150% to 250% of rated voltage depending on voltage class
- Dissipation Factor: Max 0.1% at 1kHz for C0G, Max 3.5% at 1kHz for X7R
- Case Sizes: 0805, 1206, 1808, 1812, 1825, 2220, 2225
- Termination: Ni barrier with 100% tin plating, Polymer options available
- RoHS and Vishay Green compliant, suitable for surface mounting
- Packaging includes embossed plastic and punch paper tapes, suitable for automated placement
- Suitable for demanding filtering, snubber circuits, and sensitive board flex applications
- Reliable noble metal electrode system, resistant to thermal and mechanical stresses
- Storage conditions: 5°C to 40°C, below 70% humidity, use within 2 years
Buy the Vishay Series VJ OMD Ceramic Capacitors: VJ1210Y472KXGAT4X
Order Vishay VJ1210Y472KXGAT4X ceramic capacitors online today and benefit from high voltage stability, outstanding thermal performance, and board flex resistance. These surface-mount components offer advanced open mode design with polymer termination, ensuring durability and minimal risk of cracking during assembly and operation. Perfect for filtering, snubber circuits, and high-frequency filtering in switching power supplies, they provide reliable performance in demanding environments. Purchase now for fast delivery and expert support to enhance your electronic designs.
Buy Vishay VJ1210Y472KXGAT4X now and experience unmatched reliability and thermal stability in sensitive electronic applications.
Frequently Asked Questions
Where can I buy Vishay VJ1210Y472KXGAT4X?
You can click on the BUY or RFQ button to purchase VJ1210Y472KXGAT4X from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1210Y472KXGAT4X?
You can download the VJ1210Y472KXGAT4X datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1210Y472KXGAT4X?
Vishay
