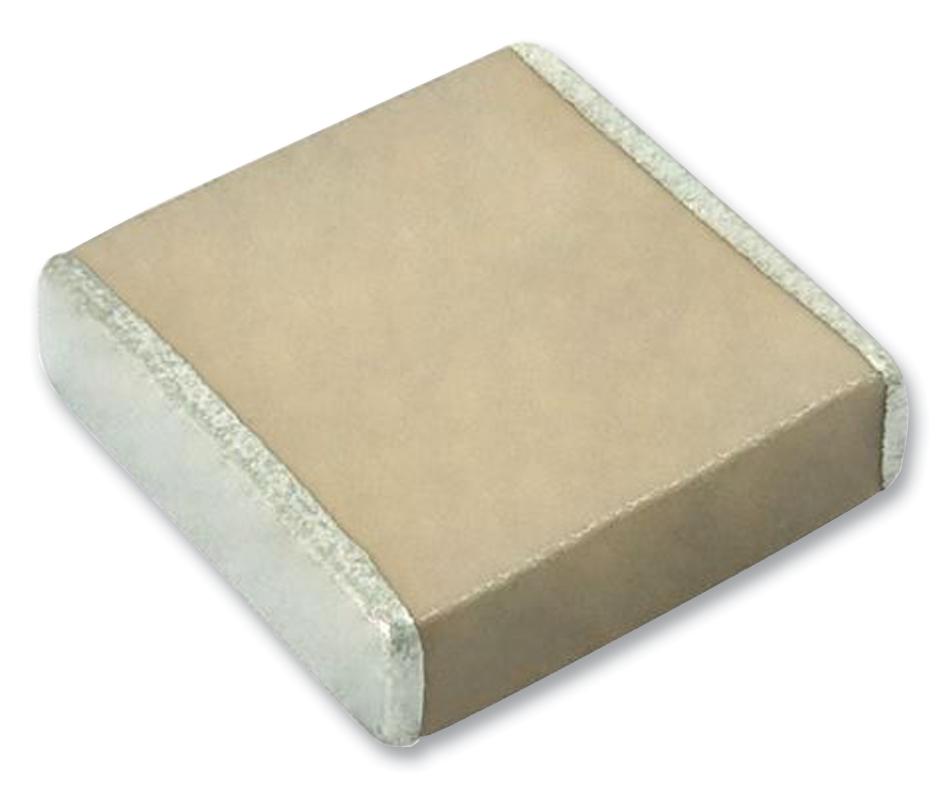

Vishay VJ2525D271KXOAT High-Frequency RF Capacitor
Vishay Vitramon QUAD HIFREQ Series surface-mount multilayer ceramic capacitors are ultra-stable high Q dielectric components designed for RF power applications. Suitable for MRI coils, RF instruments, lasers, CATV, and microwave RF power amplifiers, these capacitors have broad temperature ranges up to 200°C, high voltage ratings up to 7200 V, and low dissipation factors for high-frequency stability. Constructed with RoHS-compliant, halogen-free, and non-magnetic copper termination options, they ensure reliable performance in demanding industrial and communication environments.
Vishay VJ2525D271KXOAT High-Frequency RF Capacitor Specifications:
- Case size: 2525
- Capacitance range: 1.0 pF to 2700 pF
- Voltage rating: 300 Vp¢ to 3600 Vpg
- Operating temperature: -55 °C to +200 °C
- Temperature coefficient of capacitance: 0 ppm/°C + 30 ppm/°C
- Dissipation factor: 0.05 % max. at 1.0 Vams and 1 MHz
- Insulation resistance: ≥ 100,000 MΩ at +25 °C and rated voltage
- Dielectric strength: minimum 150 % of rated voltage depending on voltage class
- Material: COG (D), RoHS, halogen-free options available
- Terminations: Ni barrier, tin plated, non-magnetic copper options, RoHS compliant
- Dimensions: approximately 0.25 inches (length), 0.36 inches (width), thickness approximately 0.118 inches
- Reliability: Designed for RF, microwave, and high-frequency applications with stable electrical characteristics.
- Packaging: 7
- 13
- waffle packs, and reel options for automation
Buy the Vishay VJ2525D271KXOAT – Reliable RF Power Capacitors for Industrial Applications
Order the Vishay VJ2525D271KXOAT high-frequency RF capacitor online today for dependable performance in RF power amplifiers, MRI coils, and microwave systems. Designed with high voltage tolerance, low dissipation, and excellent stability, these capacitors ensure optimal signal integrity and durability. Perfect for industrial, telecom, and radar applications, they feature RoHS compliance, halogen-free options, and versatile packaging for easy automation. Guarantee your project’s success with fast online delivery of these top-tier ceramic capacitors tailored for demanding high-frequency environments.
Buy Vishay VJ2525D271KXOAT now and experience unmatched reliability and performance in high-frequency RF applications.
Frequently Asked Questions
Where can I buy Vishay VJ2525D271KXOAT?
You can click on the BUY or RFQ button to purchase VJ2525D271KXOAT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ2525D271KXOAT?
You can download the VJ2525D271KXOAT datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ2525D271KXOAT?
Vishay
