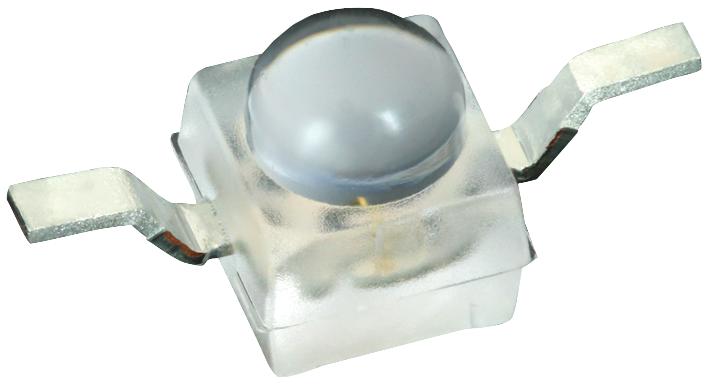

Vishay VLDK1235R Dome Lens LED
The VLDK1235R is a high-brightness yellow dome lens SMD LED designed for surface mounting applications such as traffic signals, signage, and indicator lighting. It features advanced AllnGaP technology, offering high luminous flux and intensity with a compact package size of 2.3 x 2.3 x 2.8 mm. The LED operates at a maximum forward current of 70 mA, with a wide operating temperature range from -40°C to +100°C. Its optical characteristics include a half-intensity angle of ±11°, making it suitable for various lighting and indication purposes with RoHS compliance and high reliability.
Vishay VLDK1235R Dome Lens LED Specifications:
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Package: SMD dome lens, gullwing or reverse gullwing
- Luminous intensity: 18,000 to 35,500 mcd at 50 mA
- Forward voltage: 1.9 to 2.25 V at 50 mA
- Peak wavelength: 622 nm
- Dominant wavelength: 611-621 nm
- Spectral bandwidth: 18 nm at 50%
- Reverse voltage: 5 V, short term application only
- DC Forward current: 70 mA
- Power dissipation: 200 mW
- Junction temperature: 125°C
- Operating temperature: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Thermal resistance junction/ambient: 325 K/W
- ESD withstand voltage: up to 2 kV
- RoHS and halogen-free compliant
Buy the Vishay Series Power Dome Lens LED: VLDK1235R
Purchase the Vishay VLDK1235R LED online today to enhance your lighting solutions with high brightness, energy efficiency, and reliable performance. Perfect for traffic signals, signage, and indicator lighting, this compact surface-mount LED features advanced AllnGaP technology, providing high luminous flux and long-term durability. Its small size of 2.3 x 2.3 mm makes it ideal for space-constrained applications. Enjoy fast delivery, competitive prices, and secure online ordering to meet your project deadlines effortlessly.
Buy Vishay VLDK1235R now and experience unmatched reliability and high luminous efficiency in signaling and indicator applications.
Frequently Asked Questions
Where can I buy Vishay VLDK1235R?
You can click on the BUY or RFQ button to purchase VLDK1235R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLDK1235R?
You can download the VLDK1235R datasheet or visit the Vishay website for support.
Who is the manufacturer of VLDK1235R?
Vishay
