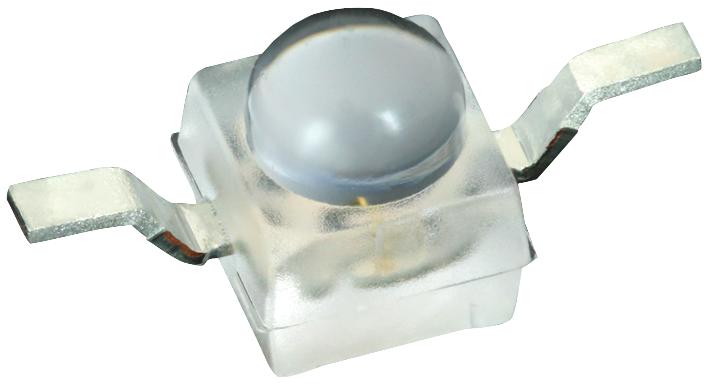

Vishay VLDY1235R Yellow Dome Lens LED
The VLDY1235R is a high-brightness yellow dome lens SMD LED designed for surface mounting on PCBs. It features a compact size of 2.3 x 2.3 x 2.8 mm, utilizing advanced AllnGaP technology for high luminous flux and intensity. Suitable for indoor and outdoor applications like traffic signals, signage, illumination, and indicator lighting, it offers a wide viewing angle of about 9°, high reliability with a reverse voltage of up to 5V, and can handle a maximum DC forward current of 70 mA. The device complies with RoHS standards and is halogen-free, making it ideal for environmentally conscious projects.
Vishay VLDY1235R Yellow Dome Lens LED Specifications:
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Package type: SMD dome lens with gullwing or reverse gullwing configuration
- Luminous intensity: 14500 to 35500 mcd at 50 mA
- Dominant wavelength: 611 to 621 nm
- Peak wavelength: around 622 nm
- Spectral bandwidth: 18 nm at 50% intensity
- Forward voltage: 1.9 to 2.25 V at 50 mA
- Reverse voltage: up to 5 V for short-term application
- Maximum DC forward current: 70 mA
- Power dissipation: 200 mW
- Junction temperature: 125°C
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Thermal resistance junction/ambient: 325 KW
- RoHS compliant, halogen-free, with high reliability for outdoor and indoor use
Buy the Vishay Series Power Dome Lens LED: VLDY1235R
Order the Vishay VLDY1235R yellow dome lens LED online today. Designed for surface mounting, it offers high luminous flux, a compact size of 2.3x2.3x2.8mm, excellent reliability, and wide application suitability in traffic signals, signage, and indicator lighting. Its advanced AllnGaP technology ensures vibrant color and long-lasting performance, while RoHS compliance and halogen-free construction make it environmentally friendly. Perfect for creating bright, energy-efficient lighting solutions with superior visibility and durability in various outdoor and indoor environments.
Buy Vishay VLDY1235R now and experience unmatched reliability and high brightness performance for your signaling and indicator needs.
