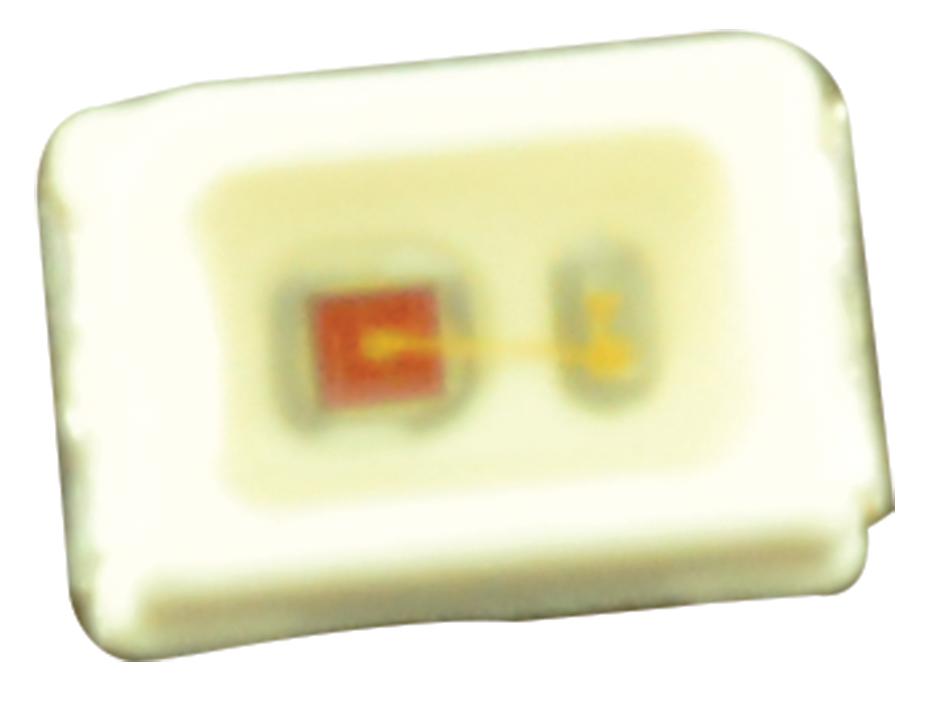

Vishay VLMR234ABCAGS08 High-power red SMD LED
The VLMR234ABCA-GS08 from Vishay is a compact, high-power red SMD LED measuring 2.3mm x 1.3mm x 1.4mm. Designed for demanding environments, it is suitable for automotive and industrial applications, including traffic signals, signage, interior and exterior lighting, dashboard illumination, indicators, and backlighting for electronic devices like audio and video equipment, LCDs, switches, and illuminated advertising. This LED features advanced AlInGaP technology, is automotive-grade AEC-Q101 qualified, and offers an ESD withstand voltage up to 2kV as per JESD22-A114-B. It can withstand IR reflow soldering, has a luminous intensity of approximately 2000mcd at 50mA, a wavelength of around 625nm, and a maximum forward voltage of 2.8V at 50mA.
Vishay VLMR234ABCAGS08 High-power red SMD LED Specifications:
- Package Size: 2.3 mm x 1.3 mm x 1.4 mm
- Color: Red
- Luminous Intensity: ~2000 mcd at 50 mA
- Wavelength: ~625 nm
- Forward Voltage: max 2.8 V at 50 mA
- Reverse Voltage: 5 V (short-term)
- DC Forward Current: up to 70 mA
- Power Dissipation: 200 mW
- Junction Temperature: 125°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- ESD Withstand Voltage: up to 2 kV
- Material: Advanced AlInGaP technology
- Qualifications: AEC-Q101 automotive-grade
- Reflow Soldering: IR process (5-208°C)
Buy the VISHAY VLMR234ABCA-GS08 – Reliable Red LED for Industrial Applications
Purchase the Vishay VLMR234ABCA-GS08 high-power red SMD LED online today and ensure reliable illumination for automotive, industrial, and signage applications. This compact device measures 2.3mm x 1.3mm x 1.4mm, features advanced AlInGaP technology, and provides approximately 2000mcd luminous intensity at 50mA. It is AEC-Q101 qualified for automotive use, with a forward voltage of max 2.8V, and can withstand IR reflow soldering. Ideal for traffic signals, dashboards, and backlighting solutions, it guarantees performance and durability in harsh environments.
Get Vishay VLMR234ABCA-GS08 today—built for automotive-grade reliability and high-power illumination in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay VLMR234ABCAGS08?
You can click on the BUY or RFQ button to purchase VLMR234ABCAGS08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMR234ABCAGS08?
You can download the VLMR234ABCAGS08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMR234ABCAGS08?
Vishay
