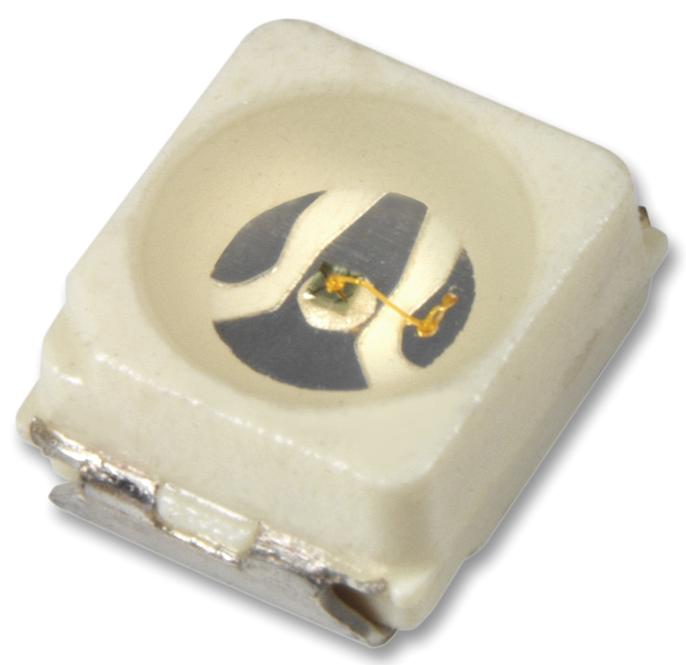

Vishay VLMY31J1K2GS08 Surface Mount LED
The VLMY31J1K2-GS08 is a standard surface-mount LED designed for indicator and backlighting applications in office equipment, LCDs, switches, and symbols. This LED features a non-diffused lens suitable for coupling to light pipes and backlighting, with excellent brightness and color selectivity. Manufactured using GaAsP on GaP technology, it offers low power consumption, high brightness, and reliable performance. The device is compatible with IR reflow, vapor phase, and wave soldering processes in line with CECC 00802 and J-STD-020 standards. It has a white thermoplastic package with an embedded lead frame, filled with clear epoxy reflector, ensuring durability. The LED is compliant with JEDEC preconditioning level 2a, withstanding up to 2kV ESD, a reverse voltage of 6V, and power dissipation of 100mW. It is halogen-free and environmentally friendly. Typical applications include automotive, communications and networking, signaling, audio, imaging, video, and vision systems.
Vishay VLMY31J1K2GS08 Surface Mount LED Specifications:
- Package: SMD PLCC-2
- Material: White thermoplastic with embedded lead frame
- Reflector: Filled with clear epoxy
- Lens type: Non-diffused
- Material Technology: GaAsP on GaP
- Typical brightness: 76 mcd at 10 mA
- Wavelength: 588 nm
- Luminous intensity: 45 to 76 med
- Forward Voltage: 2.4 to 3.0 V at 20 mA
- Reverse Voltage: 6 V
- Power Dissipation: 100 mW
- Operating Temperature Range: -40°C to +100°C
- ESD withstand voltage: Up to 2 kV
- Compliance: JEDEC level 2a, RoHS, halogen-free
- Soldering: Reflow, vapor phase, wave soldering compatible
- Dimensions: according to schematic, standard for PLCC-2 package
- Shelf life in sealed bag: 12 months at <40°C and <90% RH
- Storage temperature: -40°C to +100°C
Buy the Buy Vishay Surface-Mount LED Part Number VLMY31J1K2-GS08 Online
Purchase the Vishay VLMY31J1K2-GS08 online to ensure high-quality indicator and backlighting performance in your electronic devices. Perfect for automotive, telecommunication, and general illumination applications, this LED offers excellent brightness, low power consumption, and compatibility with standard reflow and vapor phase soldering processes. Its non-diffused lens makes it ideal for coupling with light pipes and backlighting solutions, providing reliable performance in demanding environments. Order now for fast delivery and ensure your project benefits from superior LED technology with proven durability and efficiency.
Get Vishay VLMY31J1K2-GS08 today—designed for reliable indicator and backlighting in electronics with low power consumption and high brightness.
Frequently Asked Questions
Where can I buy Vishay VLMY31J1K2GS08?
You can click on the BUY or RFQ button to purchase VLMY31J1K2GS08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLMY31J1K2GS08?
You can download the VLMY31J1K2GS08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLMY31J1K2GS08?
Vishay
