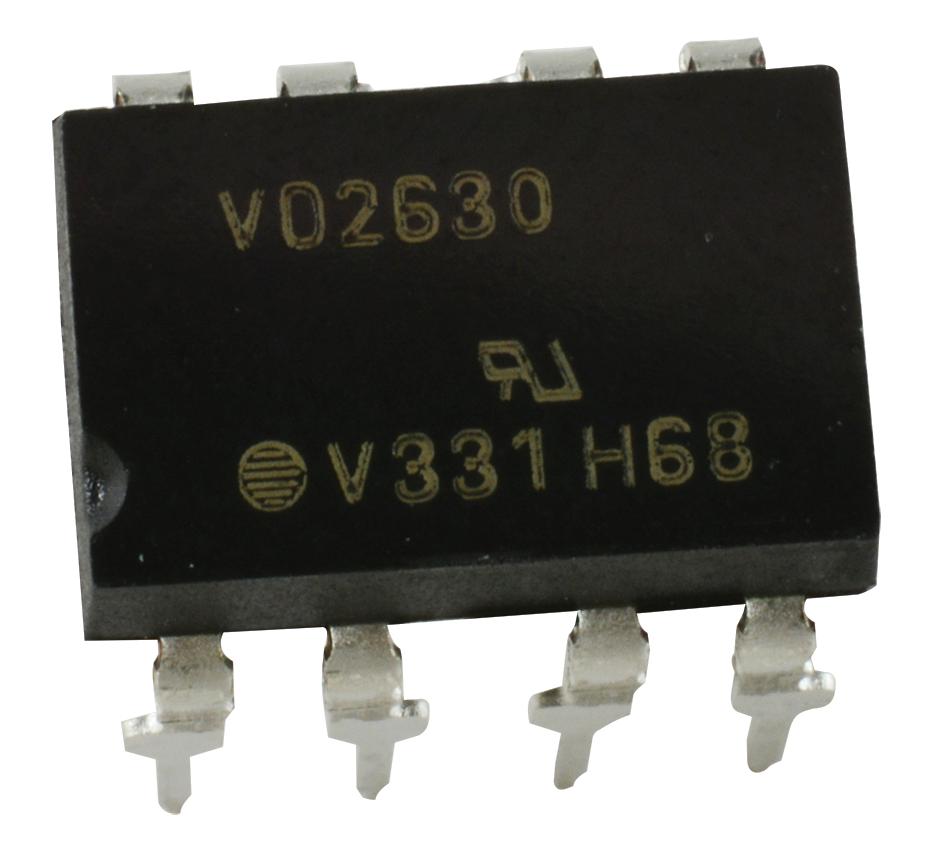

Vishay VO2630 High-Speed Dual-Channel Optocoupler
The VO2630 is a high-speed dual-channel optocoupler operating at 10 MBd, designed for digital isolation applications. It features an integrated photodiode detector with an open drain NMOS-transistor output, providing high common mode transient immunity of 15 kV/us. Suitable for microprocessor interfaces, digital fieldbus isolation, and AC plasma display level shifting, it operates within -40°C to +100°C temperature range, with a typical forward current of 20 mA for each channel. Its LED input and photodiode detector ensure low input current capability, making it ideal for precise digital communication and noise isolation in industrial systems.
Vishay VO2630 High-Speed Dual-Channel Optocoupler Specifications:
- Operating temperature: -40°C to +100°C
- Input forward current: 20 mA
- Reverse input voltage: 5 V
- Output current: 50 mA
- Output voltage: 7 V
- Supply voltage: 7 V maximum
- Output power dissipation: 85 mW per channel
- Input voltage high: 5-15 V
- Input voltage low: 0-0.8 V
- Coupler type: Dual-channel, high-speed, optocoupler
- Common mode transient immunity: 15 kV/us
- Package options: DIP-8, SMD-8
- Lead solder temperature: 260°C for 10s
- Storage temperature: -55°C to +150°C
- Operating temperature: -40°C to +100°C
- ESD level: HBM class 2
- Material: RoHS compliant, lead-free
- Certifications: UL, cUL, VDE, IEC
Buy the Vishay Series High-Speed Optocoupler: VO2630
Enhance your electronic system with the Vishay VO2630 dual-channel optocoupler, offering 10 MBd high-speed data transmission, exceptional noise isolation, and robust performance over a wide temperature range. Ideal for microprocessor interface, industrial automation, and digital fieldbus applications, it provides reliable AC and DC characteristics. Its compact DIP-8 or SMD-8 packages ensure easy integration into your designs. Secure yours today and experience the perfect balance of speed, durability, and noise immunity for your critical digital communication needs.
Get Vishay VO2630 today—built for high-speed digital isolation, noise reduction, and reliable performance in industrial and automation systems.
