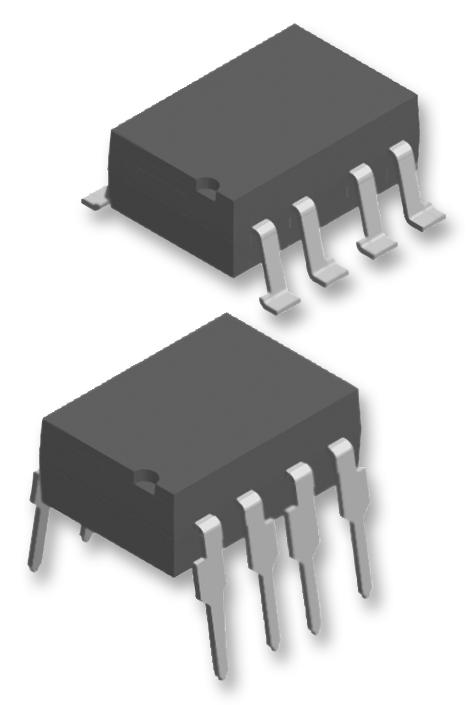

Vishay VO3150AX017T Industrial IGBT MOSFET Driver
The VO3150A is an optocoupler designed for driving power IGBTs and MOSFETs in motor control inverter applications and industrial inverters. It features a high operating voltage range of 15 V to 32 V, a minimum peak output current of 0.5 A, and is suitable for directly driving IGBTs up to 800 V/20 A. The device offers fast propagation delay of 0.4 μs, high common mode rejection of 25 kV/μs, and operates reliably across -40°C to 110°C. Approvals include UL and cUL safety standards, making it ideal for switching mode power supplies and AC motor drives.
Vishay VO3150AX017T Industrial IGBT MOSFET Driver Specifications:
- Input forward current: 25 mA
- Peak transient input current: 1 A
- Reverse input voltage: 5 V
- Output high peak current: 0.5 A
- Output low peak current: 0.5 A
- Supply voltage range: 15 V to 32 V
- Output voltage: Up to 35 V
- Output power dissipation: 250 mW
- Maximum output power dissipation: 45 mW (input), 250 mW (output), total 295 mW
- Isolation test voltage: 5300 V
- Temperature range: -40°C to 110°C operating, -56°C to +125°C storage
- Thermal resistance junction to case: 192 °C/W, junction to board: 169 °C/W
- Maximum junction temperature: 125°C
- Creepage and clearance distances: 7-8 mm depending on package type
- UL, cUL safety approvals, IEC 60747-5-5 compliant for electrical insulation
Buy the Vishay VO3150A – Reliable IGBT and MOSFET Driver for Industrial Applications
Purchase the Vishay VO3150A optocoupler online today and enhance your power electronic systems. Designed for driving IGBTs up to 800 V and MOSFETs efficiently, this device offers high current capacity of 0.5 A, fast response at 0.4 μs, and wide voltage operation from 15 V to 32 V. Its robust construction ensures reliable operation across temperatures from -40°C to 110°C, making it suitable for industrial inverters, motor drives, and switching power supplies. Order now for quick delivery and optimal performance in your projects.
Get Vishay VO3150A today—built for high power switching and fast response in industrial motor control and power supply systems.
Frequently Asked Questions
Where can I buy Vishay VO3150AX017T?
You can click on the BUY or RFQ button to purchase VO3150AX017T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VO3150AX017T?
You can download the VO3150AX017T datasheet or visit the Vishay website for support.
Who is the manufacturer of VO3150AX017T?
Vishay
