Vishay VO615A1X001 High-Temperature Optocoupler

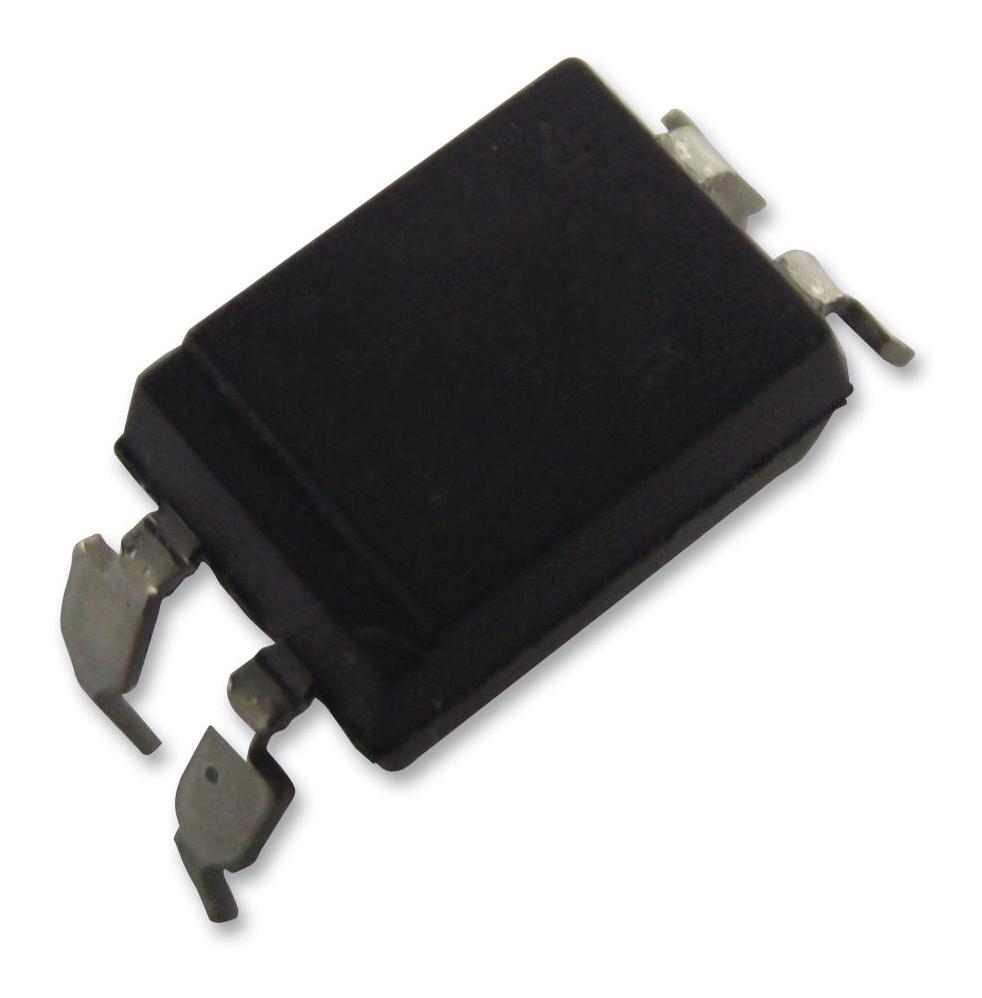

The VO615A is a high-temperature optocoupler featuring a phototransistor output, constructed with a gallium arsenide infrared-emitting diode in a compact 4-pin plastic dual inline package. It offers excellent isolation with a rated impulse voltage of 6kV peak and a typical isolation test voltage of 1.6kV. Designed for safe circuits requiring reinforced isolation, it operates within a temperature range of -55°C to +110°C. Suitable for switch-mode power supplies, line receivers, and microprocessor interfaces, it adheres to strict international safety standards and RoHS compliance.
Vishay VO615A1X001 High-Temperature Optocoupler Specifications:
- Temperature Range: -55°C to +110°C
- Isolation Test Voltage: 1.6 kV
- Rated Impulse Voltage: 6 kV peak
- Collector-Emitter Voltage Vce: 70 V
- Emitter-Collector Voltage Veco: 7 V
- Collector Current Ic: 50 mA
- Isolation Voltage RMS: 600 V
- Power Dissipation at 25°C: 70 mW
- Soldering Temperature: 260°C for 10s at 2mm from case
- Device Certifications: UL, CSA, EN 60065, EN 60950-1, DIN EN 60747-5-5, RoHS
- Package Type: 4-pin DIP plastic package
- Package Dimensions: typical length 7.62 mm, width 7.62 mm, height 10.3 mm
- Delay Time: 3 µs, Rise Time: 3 µs, Fall Time: 7 µs
- Storage Temperature Range: -55°C to +125°C
- Maximum Heat Resistance: Tj max 150°C
Buy the VISHAY VO615A – Reliable Optocoupler for Industrial Applications
Purchase the VISHAY VO615A optocoupler online today and enjoy dependable electrical isolation for switch-mode power supplies, line receivers, and interface circuits. This high-temperature device offers reinforced safety, certified standards, RoHS compliance, and a compact design suitable for industrial applications. Experience quick delivery and trusted quality, ensuring your projects meet safety and performance standards. Ideal for microprocessor systems, safety circuits, and power supply designs, order now and secure reliable operation for your electronic systems.
Order your VISHAY VO615A high-temperature optocoupler today and ensure safe, reliable electrical isolation for your power supplies, microprocessors, and safety circuits.
