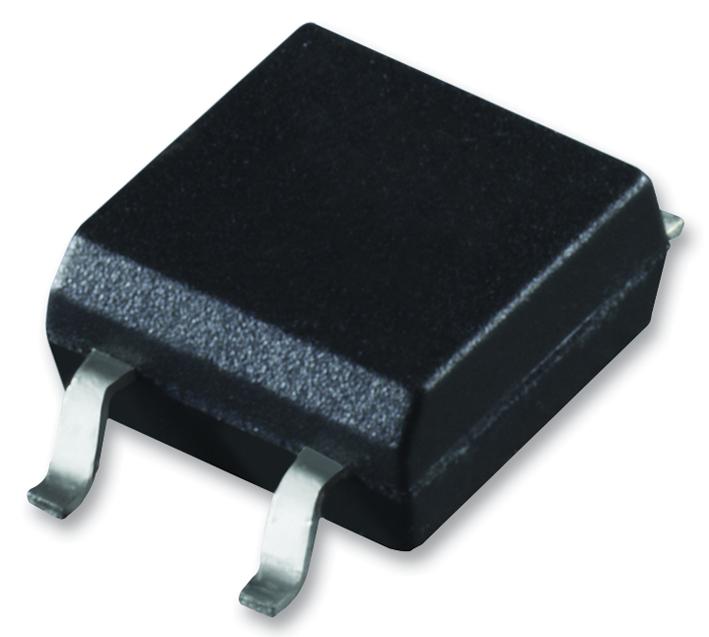

Vishay VOMA618AX001T Optocoupler
The VOMA618A series is an optocoupler with a GaAlAs infrared emitting diode optically coupled to a silicon planar phototransistor detector in a compact SOP-4 package. Designed for high reliability, it features high CTR at low input current, low coupling capacitance, and high isolation voltage of 3750 Vms, making it suitable for signal transmission, galvanic isolation, and noise filtering in automotive and industrial applications. It meets strict safety and insulation standards including UL1577, VDE, and CQC certifications, providing robust performance in various electrical environments.
Vishay VOMA618AX001T Optocoupler Specifications:
- High collector-emitter voltage, Vcgo = 80 V
- Isolation test voltage = 3750 Vms
- Input reverse voltage Vr = 5 V
- Input forward current Ip = 20 mA
- Power dissipation: Input 30 mW, Output 150 mW, Total 180 mW
- Collector emitter voltage Vceo = 80 V, Emitter collector voltage Veco = 7 V
- Collector current Io = 50 mA
- Junction temperature Tj = 125 °C
- Storage temperature range: -40 to +150 °C
- Ambient temperature range: -40 to +110 °C
- Soldering temperature: 260 °C for 10 s
- Insulation resistance: ≥ 10^12 Ω at 500 V
- Creepage and clearance distance: 25 mm
- RoHS compliant
- Operating at frequency up to 155 kHz with fast switching times
Buy the VISHAY VOMA618A – Reliable Optical Coupler for Industrial Applications
Order the VISHAY VOMA618A optocoupler today online to ensure seamless signal transfer and galvanic isolation for your automotive and industrial projects. Featuring high CTR at low input currents, excellent voltage isolation of 3750 Vms, compact SOP-4 package, and certified safety standards, this device guarantees robust performance under demanding conditions. Whether you need noise filtering, system control, or battery management, buy now to enhance your electronic system’s reliability with Vishay's trusted optocouplers designed for high-performance electrical and signal isolation.
Buy VISHAY VOMA618A now and experience unmatched reliability and performance in signal transmission and electrical isolation solutions.
