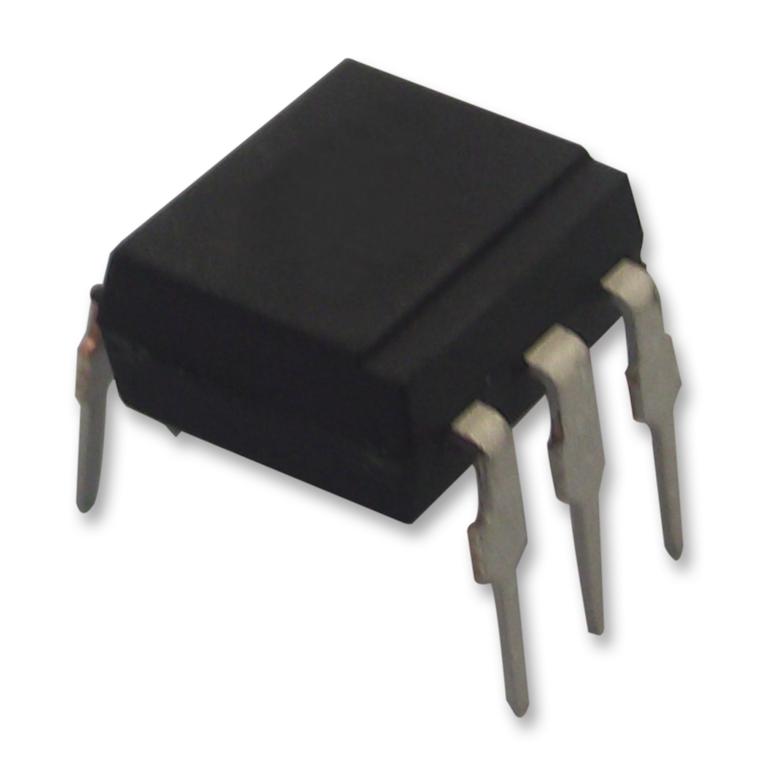

Vishay VOT8123AG Phototriac Optocoupler
The VOT8123A is a high-performance optocoupler featuring a GaAs IRLED coupled with a phototriac in a DIP-6 package. It provides excellent isolation between low-voltage logic and high-voltage AC lines up to 380 Vac, making it ideal for controlling resistive, inductive, or capacitive loads including motors and relays. Its high dV/dt of 1000 V/s, low input current of 10 mA, and 100 mA on-state current ensure reliable operation in industrial power switching and solid-state relay applications, backed by UL and VDE certifications.
Vishay VOT8123AG Phototriac Optocoupler Specifications:
- Input Reverse Voltage: 6 V
- Input Forward Current: 50 mA
- Input Power Dissipation: 120 mW
- Junction Temperature: 125°C
- Output Peak Off-State Voltage: 800 V
- Output On-State Current: 100 mA
- Peak Surge Current: 1 A
- Output Power Dissipation: 300 mW
- Storage Temperature Range: -55 to +125°C
- Ambient Temperature Range: -40 to +110°C
- Total Power Dissipation: 330 mW
- Soldering Temperature (10s): 260°C
Buy the Vishay Series VOT8123 Phototriac Optocoupler: VOT8123AG
Purchase the Vishay VOT8123AG online today to enhance your power control systems with a high-isolation, high-dV/dt, low input current optocoupler. Designed for industrial applications, it features a GaAs IRLED coupled with a phototriac, providing reliable switching for resistive, inductive, and capacitive loads up to 380 volts. Certified by UL and VDE, this component ensures safety and long-term durability. Whether used in motor control, solid-state relays, or household equipment, buy online now for fast delivery and trusted performance.
Get Vishay VOT8123AG today—built for high isolation, reliable power switching, and industrial control applications.
