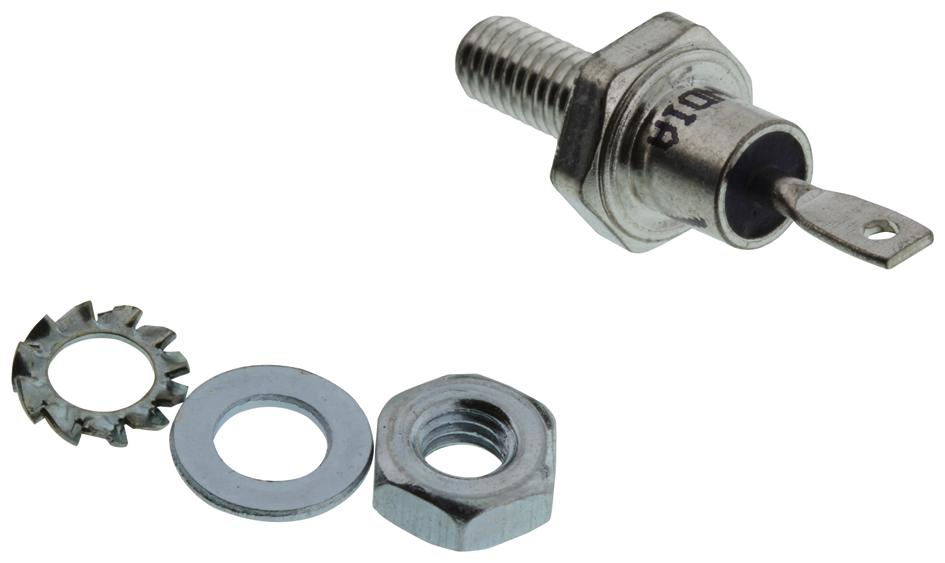

Vishay VS16F120 High Surge Current Diode
The Vishay VS-16F120 is a high surge current diode with a 16 A current rating, designed for industrial and consumer applications such as power supplies, battery chargers, and converters. It features a DO-203AA package with a stud version, capable of handling voltages up to 1200 V, and is RoHS compliant. This diode offers excellent surge current capabilities, low forward voltage, and thermal stability in high-temperature environments. Ideal for efficient rectification and circuit protection, it is extensively used in power electronics, control systems, and energy conversion modules.
Vishay VS16F120 High Surge Current Diode Specifications:
- Package: DO-203AA (DO-4)
- Current Rating: 16 A
- Voltage Range: 100 to 1200 V
- Peak Repetitive Reverse Voltage: 600 V
- Maximum Forward Current: 16 A
- Maximum RMS Forward Current: 25 A
- Surge Forward Current: 370 A (50Hz), 560 A (60Hz)
- Maximum Operating Temperature: -65°C to +175°C
- Storage Temperature: -65°C to +200°C
- Thermal Resistance, Junction to Ambient: 1.6°C/W
- Peak Non-Repetitive Surge Current: 6120 A
- Forward Voltage Drop: approx. 1.23 V at 50A
- Case Dimensions: width 3.30 mm, length 10.20 mm, height 11.50 mm
- RoHS Compliant, Designed for industrial and consumer electronics
- Stud version with copper studs for high current reliability
Buy the Vishay Series VS-16F120 High Surge Current Diode: 16A 1200V
Purchase the Vishay VS-16F120 high surge current diode online today to ensure your power supply, converter, or industrial control project benefits from robust performance. Designed to handle voltages up to 1200V and surge currents of up to 6120A, this diode guarantees reliable rectification and circuit protection in demanding applications. Its durable construction, RoHS compliance, and efficient thermal management make it ideal for high-temperature environments. Order now and enhance your electronic systems with proven quality and high current handling capabilities.
Buy Vishay VS-16F120 high surge current diode now and experience unmatched reliability and performance in power electronics and industrial control systems.
Frequently Asked Questions
Where can I buy Vishay VS16F120?
You can click on the BUY or RFQ button to purchase VS16F120 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS16F120?
You can download the VS16F120 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS16F120?
Vishay
