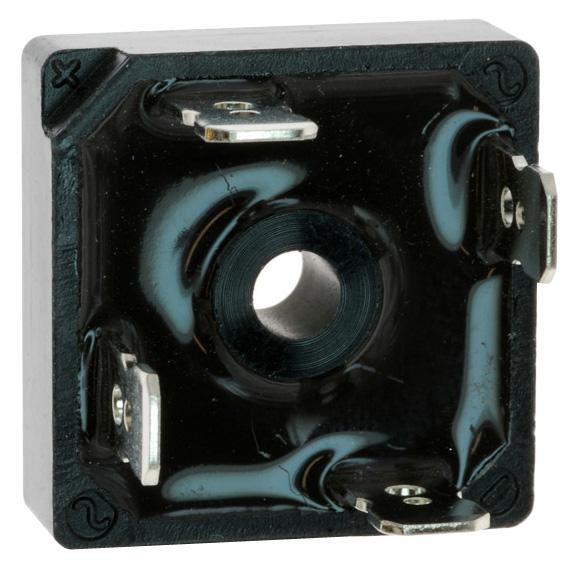

Vishay VS26MB60A Bridge Rectifier
The VS-26MB60A is a compact, single-phase encapsulated bridge rectifier engineered for efficient and reliable mains rectification. It features nickel-plated terminals, a center hole for straightforward mounting, and boasts an excellent power-to-volume ratio. Key ratings include a maximum non-repetitive peak reverse voltage of 725V, a maximum repetitive peak reverse current of 2A, a low threshold voltage of 0.76V, a high threshold voltage of 0.92V, and a maximum DC reverse current of 10μA. Suitable for industrial and instrumentation applications, it ensures high performance in demanding environments and is compliant with RoHS regulations.
Vishay VS26MB60A Bridge Rectifier Specifications:
- Maximum non-repetitive peak reverse voltage: 725V
- Maximum repetitive peak reverse current: 2A
- Threshold voltage: 0.76V (low), 0.92V (high)
- Maximum DC reverse current: 10μA
- Package: D-34, Mounting hole for easy installation
- Maximum junction temperature: 150°C
- Thermal resistance junction to case: 12 K/W
- Maximum thermal resistance (mounting surface): 0.2 K/W
- Weight: 20g
- Material: Encapsulated, RoHS compliant
- Lead terminals: Nickel-plated, solderable using lead-free solder (Sn/Ag/Cu)
- Designed for industrial, instrumentation, and power supply applications
Buy the Vishay Series MB Bridge Rectifier: VS26MB60A
Purchase the Vishay VS26MB60A now for a highly efficient, reliable single-phase bridge rectifier designed for industrial and instrumentation power supplies. Its encapsulated D-34 package offers excellent thermal management, easy mounting with a center hole, and nickel-plated terminals for durability. Rated for a maximum non-repetitive peak reverse voltage of 725V and a peak current of 2A, it ensures long-lasting performance even in demanding environments. Ideal for mains rectification, this component complies with RoHS standards and guarantees high stability and safety in your power circuit designs.
Buy Vishay VS26MB60A now and experience unmatched reliability and high efficiency in power rectification for industrial applications.
Frequently Asked Questions
Where can I buy Vishay VS26MB60A?
You can click on the BUY or RFQ button to purchase VS26MB60A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS26MB60A?
You can download the VS26MB60A datasheet or visit the Vishay website for support.
Who is the manufacturer of VS26MB60A?
Vishay
