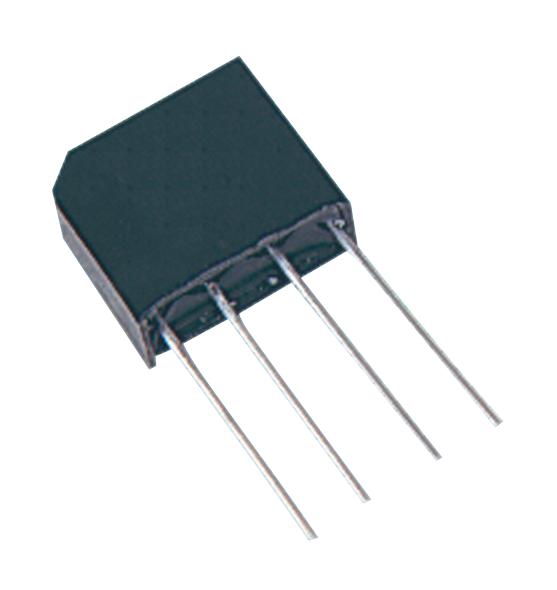

Vishay VS2KBB10R Diode Bridge Rectifier
The Vishay VS-2KBB Series is a single-phase diode bridge rectifier designed for industrial and consumer applications, capable of handling up to 1.9 A and voltages up to 1000 V. It features a compact, polarized plastic encapsulation with RoHS compliance and leads on a 2.54 mm (0.1") grid, making it suitable for printed circuit board mounting. The rectifier offers high surge current capability and is equivalent to standard DIN parts, making it versatile for various power supply circuits requiring reliable and efficient rectification.
Vishay VS2KBB10R Diode Bridge Rectifier Specifications:
- Rectifier Type: Single-phase diode bridge
- Maximum Reverse Voltage: Up to 1000 V
- Maximum DC Output Current: 1.9 A at 45°C
- Peak Surge Current: 50 A (50 Hz), 52 A (60 Hz)
- Peak Reverse Voltage (V RRM): Up to 1000 V
- Maximum Forward Voltage: 1 V at 1.9 A (per diode)
- Operating Temperature Range: -40°C to +150°C
- Package: Plastic encapsulation with polarized leads
- Lead spacing: 2.54 mm (0.1 inch)
- RoHS Compliant, suitable for PCB mounting
- Weight: Approximately 0.14 oz
- Dimensions: Length 20.00 mm, Width 14.50 mm, Height 6.00 mm
- Operating Frequency Range: 40 to 2000 Hz
Buy the Vishay Series 2KBB Diode Bridge: VS2KBB10R
Purchase the Vishay Series 2KBB diode bridge online today to benefit from high surge current capability, compact design, and robust voltages up to 1000 V. It’s ideal for applications requiring efficient single-phase rectification, with a polarized package suitable for PCB mounting. Trust Vishay’s reliable manufacturing quality and fast delivery for your industrial or consumer electronic needs. This rectifier’s high surge capacity and RoHS compliance make it perfect for various power supply circuits, providing dependable performance in demanding environments.
Order your Vishay Series 2KBB diode bridge today and ensure reliable power rectification for your industrial or consumer electronic projects.
Frequently Asked Questions
Where can I buy Vishay VS2KBB10R?
You can click on the BUY or RFQ button to purchase VS2KBB10R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS2KBB10R?
You can download the VS2KBB10R datasheet or visit the Vishay website for support.
Who is the manufacturer of VS2KBB10R?
Vishay
