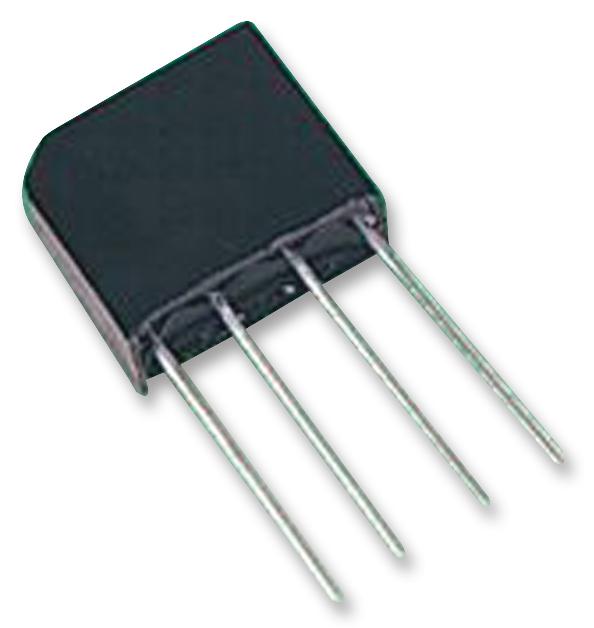

Vishay VS2KBP02 single-phase rectifier bridge
The Vishay VS-2KBP Series is a reliable single-phase rectifier bridge designed for industrial and consumer applications. Capable of handling a maximum DC output current of 2A and voltage ratings up to 1000V, this compact module features a full bridge configuration with four diodes. It offers high surge current capability and RoHS compliance, making it suitable for printed circuit board mounting. Its robust construction ensures dependable performance in various operating conditions, with a junction and storage temperature range from -40°C to +150°C, ideal for demanding electronic and power rectification tasks.
Vishay VS2KBP02 single-phase rectifier bridge Specifications:
- Maximum DC output current: 2.0 A
- Voltage ratings: 50 V to 1000 V (various models)
- Peak surge current: 63 A (non-repetitive)
- Maximum peak forward voltage: 1.0 V at 1A
- Reverse leakage current: 10 HA at 25°C
- Operating temperature range: -40°C to +150°C
- Weight: 0.14 oz.
- Package: D-44
- Mechanical dimensions: 22 mm x 15 mm x 17.5 mm
- Suitable for printed circuit board mounting
- RoHS compliant
- Thermal characteristics are suitable for inductive and resistive loads
- Peak repetitive surge current: 60A for 10-20ms
- Max junction and storage temperature: -40°C to +150°C
Buy the VISHAY VS-2KBP Series – Reliable Rectifier Bridge for Industrial Applications
Purchase the Vishay VS-2KBP Series rectifier bridge online today and ensure your power electronics operate reliably under demanding conditions. With a maximum current of 2A and voltage ratings up to 1000V, this compact full-bridge device offers high surge current capability and RoHS compliance. Its robust construction is ideal for industrial, consumer, and printed circuit board applications. Order now for speedy delivery and elevate your electronic designs with this trusted, high-performance rectifier solution.
Buy Vishay VS-2KBP Series rectifier bridge now and experience unmatched reliability and performance for your power conversion needs.
Frequently Asked Questions
Where can I buy Vishay VS2KBP02?
You can click on the BUY or RFQ button to purchase VS2KBP02 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS2KBP02?
You can download the VS2KBP02 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS2KBP02?
Vishay
