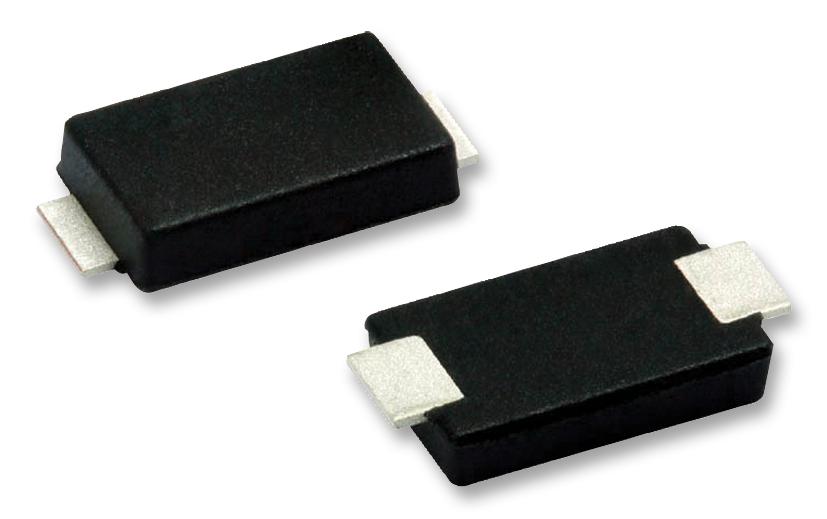

Vishay VS3EYH01M3H High-speed Rectifier
The Vishay Hyperfast Rectifier in SlimSMAW package is designed for high-frequency applications such as DC/DC converters, PFC, and snubber circuits in industrial and automotive use. It features a low profile, halogen-free and RoHS-compliant construction, with low forward voltage drop, low leakage current, and excellent switching characteristics. The device is equipped with matte tin-plated leads, suitable for automated soldering, and meets UL 94V-0 flammability standards. It offers high-reliability, robust mechanical design, and optimized thermal performance for demanding power electronics applications.
Vishay VS3EYH01M3H High-speed Rectifier Specifications:
- Case: SlimSMAW, DO-221AD
- Package material: Molding compound UL 94V-0
- Terminal material: Matte tin-plated leads, solderable
- Peak repetitive reverse voltage: 100 V (VS-3EYH01-M3), 200 V (VS-3EYH02-M3)
- Average rectified forward current: 3 A at 137°C
- Maximum junction temperature: 175°C
- Operating temperature range: -55°C to +175°C
- Thermal resistance junction to ambient: 120-150 °C/W
- Forward voltage at 3 A, 150°C: 0.71-0.79 V
- Reverse leakage current at rated voltage, 150°C: up to 20 μA
- Junction capacitance at 200 V: 16 pF
- Reverse recovery time: 16-30 ns (varies with conditions)
- Peak recovery current: 7 A
- Max surge current: 70 A
- Mechanical weight: Not specified, suitable for surface mounting
- Compliance: RoHS, halogen-free, UL 94V-0 flammability
- Process: Single circuit, designed for automated placement
Buy the Buy Vishay Hyperfast Rectifier Part Number VS3EYH01M3H Online
Enhance your electronic projects with the Vishay high-speed rectifier in SlimSMAW package. Designed for high-frequency power supplies and automotive circuits, it features a low forward voltage, excellent switching speeds, and RoHS compliance. This robust component ensures reliable operation in demanding environments, providing low power losses and high surge current capability. Perfect for automated assembly, it offers outstanding thermal performance and durability. Purchase online today for superior quality in your power management solutions, ensuring efficiency and long-term reliability for industrial, automotive, and consumer electronics applications.
Order your Vishay SeriesVS3EYH01M3H hyperfast rectifier today and enhance your high frequency power circuits with reliable, low-loss performance.
Frequently Asked Questions
Where can I buy Vishay VS3EYH01M3H?
You can click on the BUY or RFQ button to purchase VS3EYH01M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS3EYH01M3H?
You can download the VS3EYH01M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VS3EYH01M3H?
Vishay
